Passenger Air Bag Deactivation (PAD) Indicator
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

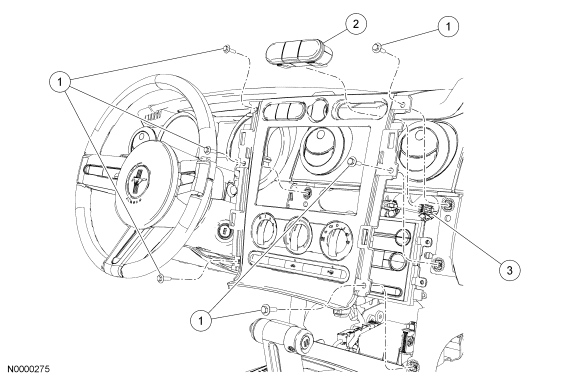

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Center instrument panel finish panel screws |
| 2 | 13D734 | Passenger Air Bag Deactivation (PAD) indicator |
| 3 | - | PAD indicator electrical connector (part of 14401) |
NOTE:
The Passenger Air Bag Deactivation (PAD) indicator is part of the Hazard/Traction control switch assembly.
- Turn the ignition the OFF and wait at least one minute.
- Remove the instrument panel center finish panel. For additional information, refer to the appropriate procedure in INSTRUMENT PANEL AND CONSOLE .
- Release the 4 tabs (2 upper and 2 lower) on the PAD indicator and remove it from the instrument panel center finish panel.
- To install, reverse the removal procedure.
- Repower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering .
NOTE:
The Ignition must be in OFF position if disconnecting the PAD indicator electrical connector. Otherwise, a DTC will be set in the Restraints Control Module (RCM) memory and must be cleared before releasing the vehicle.
