Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
The air bag Supplemental Restraint System (SRS) is designed to provide increased collision protection for front seat occupants, in addition to that provided by the 3-point safety belt system. Safety belt use is necessary to obtain the best occupant protection and to receive the full advantage of the SRS.

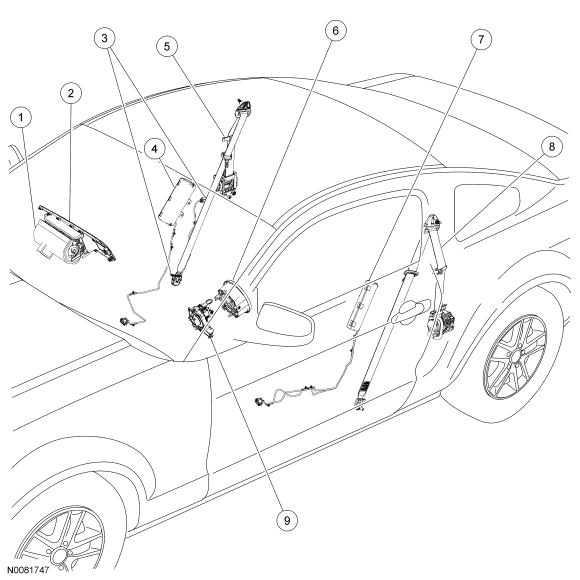

The serviceable air bag and safety belt pretensioner SRS components are shown in the following Fig 1 and Fig 2.
| Item | Part Number | Description |
|---|---|---|
| 1 | 044A74 | Passenger air bag module assembly |
| 2 | 04338 | Passenger air bag cover |
| 3 | - | Belt Tension Sensor (BTS) (part of 611B08) |
| 4 | 611D10 | Passenger seat side air bag module |
| 5 | 611B08 | Passenger safety belt retractor and pretensioner (includes BTS) |
| 6 | 043B13 | Driver air bag module |
| 7 | 611D11 | Driver seat side air bag module |
| 8 | 611B09 | Driver safety belt retractor and pretensioner |
| 9 | 14A664 | Clockspring |

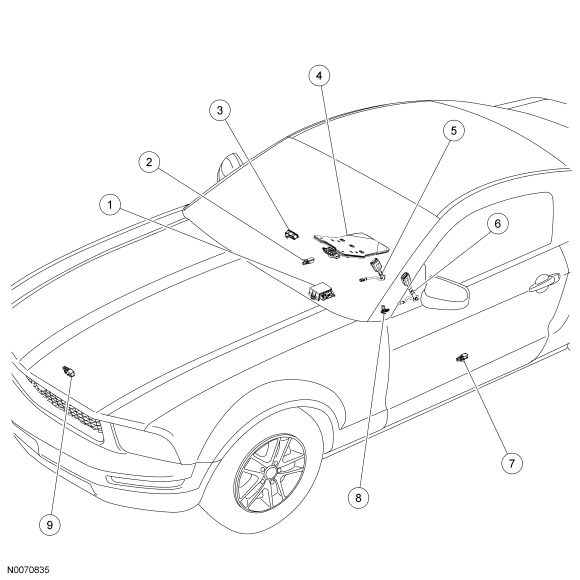

| Item | Part Number | Description |
|---|---|---|
| 1 | 14B321 | Restraints Control Module (RCM) |
| 2 | 14B345 | Passenger side impact sensor |
| 3 | - | Passenger Air Bag Deactivation (PAD) indicator |
| 4 | 603B02 | Occupant Classification Sensor (OCS) system |
| 5 | 61202 | Passenger safety belt buckle (includes safety belt switch) |
| 6 | 61203 | Driver safety belt buckle (includes safety belt switch) |
| 7 | 14B345 | Driver side impact sensor |
| 8 | 14B416 | Seat position sensor |
| 9 | 14B345 | Front impact severity sensor (Driver/Center front crash sensor) |
