Window Glass - Rear Quarter, Convertible: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

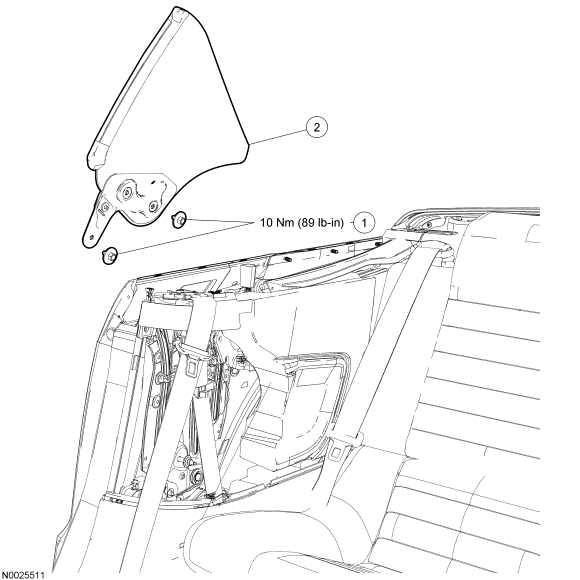

Fig 1: Exploded View Of Rear Quarter Window Glass With Torque Specification - Convertible
GF0014830Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W711156 Rear quarter window glass bolts (2 required)
2 7629710 RH/ 7629711 LH Rear quarter window glass
