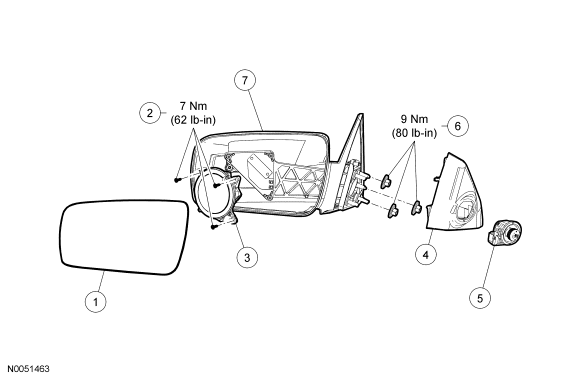

Exterior Mirrors - Exploded View
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17K707 | Exterior mirror glass |
| 2 | - | Exterior mirror motor screws (3 required) |
| 3 | 17D696 | Exterior mirror motor |
| 4 | 17K709 | Sail panel |
| 5 | 17B676 | Exterior mirror control switch |
| 6 | N621907 | Exterior mirror mounting nuts (3 required) |
| 7 | 17682 RH/ 17683 LH | Exterior mirror |
- For additional information, refer to the procedures.
