Thermostat and Thermostat Housing - Exploded View
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

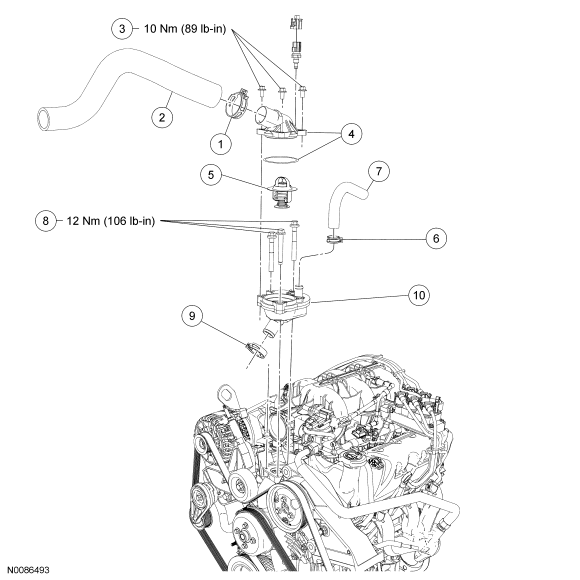

| Item | Part Number | Description |
|---|---|---|
| 1 | W525966 | Upper radiator hose clamp |
| 2 | 8260 | Upper radiator hose |
| 3 | W500015 | Upper thermostat housing bolts (3 required) |
| 4 | 8A586 | Thermostat housing cover and gasket |
| 5 | 8575 | Thermostat |
| 6 | - | Heater inlet hose clamp (part of 18472) |
| 7 | 18472 | Heater inlet hose |
| 8 | W702527 | Lower thermostat housing bolts (3 required) |
| 9 | W525966 | Bypass hose clamp |
| 10 | 8A586 | Thermostat housing |

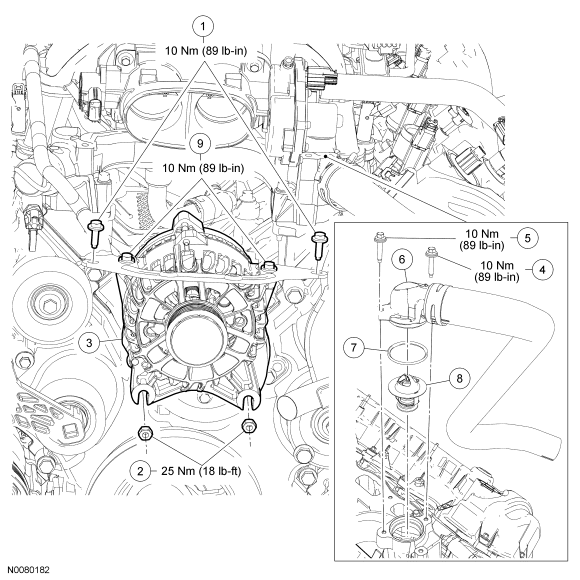

| Item | Part Number | Description |
|---|---|---|
| 1 | N807309 | Generator support bracket outer bolts (2 required) |
| 2 | N804758 | Generator nuts (2 required) |
| 3 | 10300 | Generator |
| 4 | W503279 | LH thermostat cover bolt |
| 5 | W503279 | RH thermostat cover bolt |
| 6 | 8594 | Thermostat cover |
| 7 | N806807 | Thermostat O-ring seal |
| 8 | 8575 | Thermostat |
| 9 | N807309 | Generator support bracket inner bolts (2 required) |

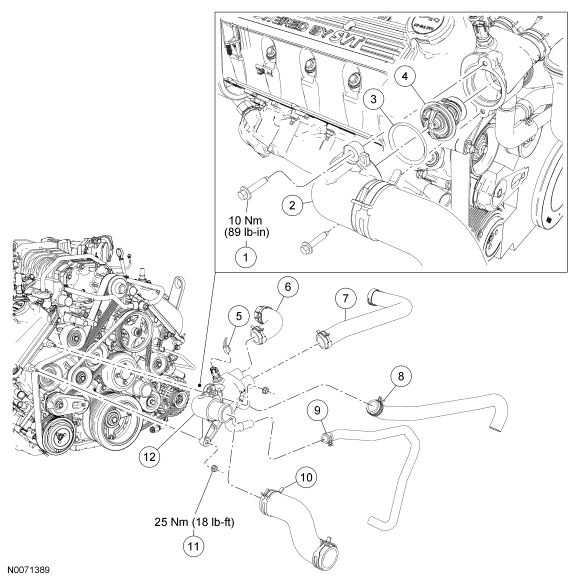

| Item | Part Number | Description |
|---|---|---|
| 1 | N605893 | Thermostat housing cover bolt (2 required) |
| 2 | 8594 | Thermostat housing cover |
| 3 | - | O-ring seal |
| 4 | 8575 | Thermostat |
| 5 | 14A464 | Engine Coolant Temperature (ECT) sensor electrical connector |
| 6 | 8A595 | Thermostat housing-to-intake manifold hose |
| 7 | 8A595 | Thermostat housing-to-intake manifold hose |
| 8 | 8A594 | Thermostat housing-to-lower radiator hose assembly |
| 9 | 6B851 | Thermostat housing-to-oil filter adapter hose |
| 10 | 8B274 | Thermostat housing-to-radiator hose |
| 11 | W520413 | Thermostat housing nut (2 required) |
| 12 | 9K478 | Thermostat housing |
- For additional information, refer to the procedures.
