Coolant Pump - 5.4L (4V): Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Premium Gold Engine Coolant with Bittering Agent (bittered in US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color) |
WSS-M97B51-A1 |

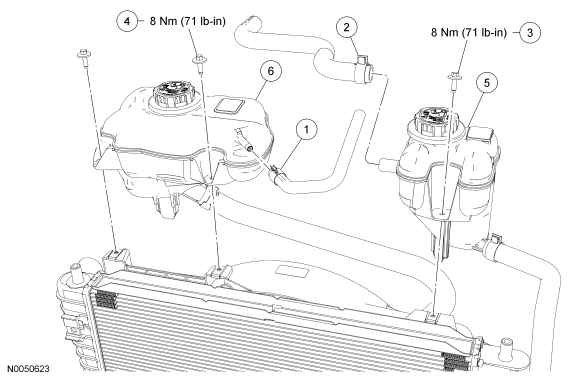

| Item | Part Number | Description |
|---|---|---|
| 1 | 8276 | Upper degas bottle hose |
| 2 | 8D031 | Upper Supercharger (SC) degas bottle hose |
| 3 | W503924 | SC degas bottle bolt |
| 4 | W503924 | Degas bottle bolt (2 required) |
| 5 | 8D028 | SC degas bottle |
| 6 | 8A080 | Degas bottle |

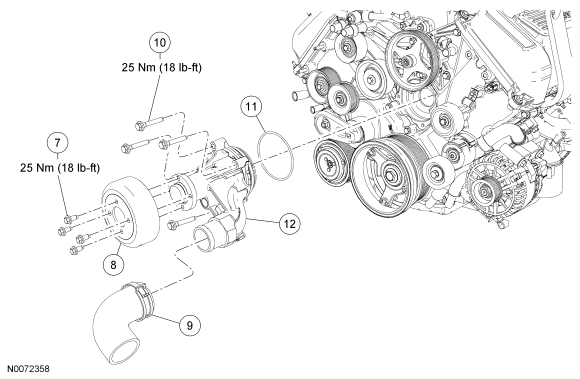

| Item | Part Number | Description |
|---|---|---|
| 7 | N806282 | Coolant pump pulley bolt (4 required) |
| 8 | 8A528 | Coolant pump pulley |
| 9 | 8B550 | Coolant pump-to-lower radiator hose assembly |
| 10 | N806177 | Coolant pump bolt (4 required) |
| 11 | - | Coolant pump O-ring seal |
| 12 | 8501 | Coolant pump |
