Battery Cables - 4.0L SOHC: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

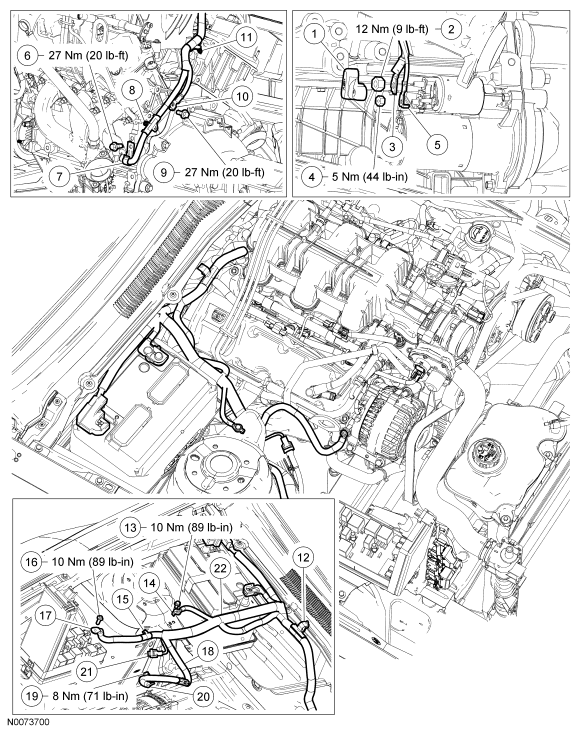

| Item | Part Number | Description |
|---|---|---|
| 1 | 11N087 | Starter solenoid terminal cover |
| 2 | W706414-S413 | Starter solenoid positive cable terminal nut |
| 3 | - | Starter solenoid positive cable terminal (part of 14300) |
| 4 | W705790-S901 | Starter solenoid wire terminal nut |
| 5 | - | Starter solenoid wire terminal (part of 14300) |
| 6 | W506031 | Battery cable harness bracket bolt |
| 7 | - | Battery cable harness bracket (part of 14300) |
| 8 | - | Battery cable harness locator (LH) (part of 14300) |
| 9 | W506031 | Battery ground cable engine terminal bolt |
| 10 | - | Battery ground cable engine terminal (part of 14300) |
| 11 | - | Battery cable harness locator (RH) (part of 14300) |
| 12 | - | Battery cable harness locator (part of 14300) |
| 13 | W712583 | Battery ground cable body terminal bolt |
| 14 | - | Battery ground cable body terminal (part of 14300) |
| 15 | - | Battery cable harness locator (part of 14300) |
| 16 | - | Bussed electrical center (BEC) terminal bolt |
| 17 | - | BEC terminal (part of 14300) |
| 18 | - | Battery cable harness locator (part of 14300) |
| 19 | W705790-S901 | Generator B+ terminal nut |
| 20 | - | Generator B+ terminal (part of 14300) |
| 21 | - | Battery cable inline connector (part of 14300) |
| 22 | 14300 | Battery cable |
