Heated Oxygen Sensor (HO2S) - 4.6L (3V), 5.4L (4V): Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
High Temperature Nickel Anti-Seize Lubricant XL-2 (US); CXG-2-B (Canada)	ESE-M12A4-A
Penetrating and Lock Lubricant XL-1 (US); CXC-51-A (Canada)	-

NOTE: 4.6L (3V) shown, 5.4L (4V) similar.

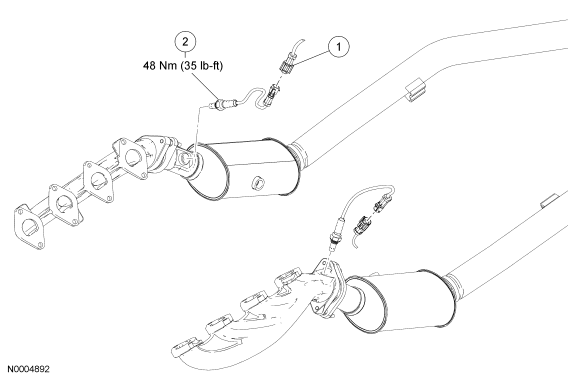

Fig 1: Exploded View Of Heated Oxygen Sensor (HO2S) With Torque Specification - 4.6L (3V), 5.4L (4V)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Heated oxygen sensor (HO2S) electrical connector (2 required)
2	9G444	HO2S
