Camshaft Position (CMP) Sensor - 4.6L (3V): Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

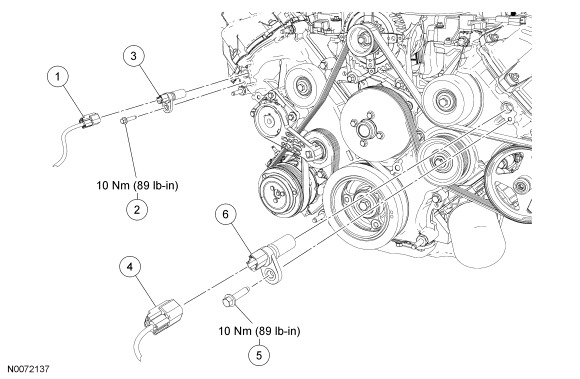

| Item |
Part Number |
Description |
| 1 |
14A464 |
RH camshaft position (CMP) sensor electrical connector (part of 12B637) |
| 2 |
N806155 |
RH CMP sensor bolt |
| 3 |
6B288 |
RH CMP sensor |
| 4 |
14A464 |
LH CMP sensor electrical connector (part of 12B637) |
| 5 |
N806155 |
LH CMP sensor bolt |
| 6 |
6B288 |
LH CMP sensor |
