Differential Case and Ring Gear: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| 2-Jaw Puller | 205-D072 (D97L-4221-A) or equivalent | |
| Installer, Differential Side Bearing | 205-009 (T57L-4221-A1) | |
| Step Plate | 205-D016 (D80L-630-5) or equivalent |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A |
| Stud and Bearing Mount TA-27 |
WSK-M2G349-A1 |
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

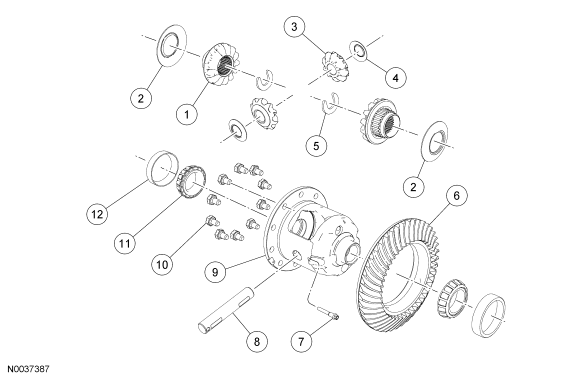

| Item | Part Number | Description |
|---|---|---|
| 1 | 4236 | Differential side gear |
| 2 | 4228 | Differential side gear thrust washers |
| 3 | 4215 | Differential pinion gear |
| 4 | 4230 | Differential pinion thrust washer |
| 5 | 4N237 | Axle shaft U-washer (2 required) |
| 6 | 4209 | Differential ring gear |
| 7 | 4241 | Differential pinion shaft lock bolt |
| 8 | 4211 | Differential pinion shaft |
| 9 | 4204 | Differential case |
| 10 | 4216 | Differential ring gear bolt (10 required) |
| 11 | 4221 | Differential bearing (2 required) |
| 12 | 4222 | Differential bearing cup (2 required) |
