Dust Separator: Notes

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

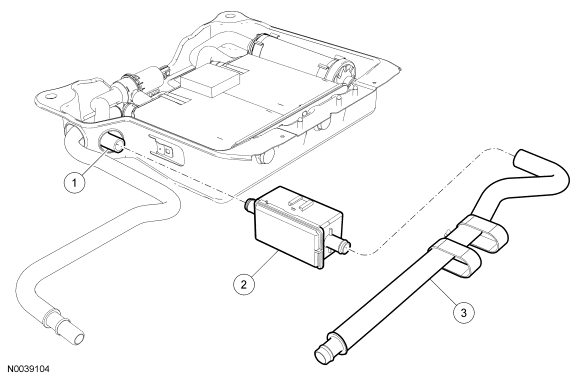

Fig 1: Exploded View Of Dust Separator
GF0013789Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9K318 Evaporative Emission (EVAP) canister vapor tube
2 9S315 Dust separator
3 9K313 Fresh air hose
