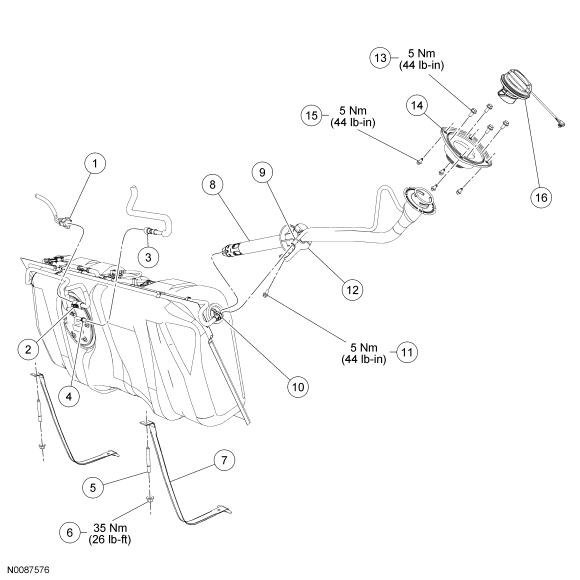

Fuel Tank And Filler Pipe - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
14A464 |
Fuel Pump (FP) module electrical connector |
| 2 |
- |
FP module electrical connector retainer clip (part of 9A407) |
| 3 |
- |
Fuel tube-to-FP module spring lock coupling (part of 9J279) |
| 4 |
9A407 |
FP module |
| 5 |
N808978 |
Fuel tank strap stud (2 required) |
| 6 |
N800627 |
Fuel tank strap nut (2 required) |
| 7 |
9055 |
Fuel tank strap (2 required) |
| 8 |
9034 |
Fuel tank filler pipe |
| 9 |
- |
Fuel tank filler pipe recirculation tube (part of 9034) |
| 10 |
- |
Fuel vapor tube assembly-to-fuel tank filler pipe recirculation tube quick connect coupling (part of 9C047) |
| 11 |
W505252 |
Fuel tank filler pipe bracket bolt |
| 12 |
- |
Fuel tank filler pipe bracket (part of 9034) |
| 13 |
N805402 |
Fuel tank filler pipe flange bolt (4 required) |
| 14 |
9A125 |
Fuel tank filler pipe seal |
| 15 |
N910157 |
Fuel tank filler pipe seal bolt (4 required) |
| 16 |
9030 |
Fuel tank filler cap |
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
9J279 |
Fuel vapor tube |
| 2 |
- |
Fuel vapor tube-to-fuel vapor tube assembly quick connect coupling (part of 9J279) |
| 3 |
9C047 |
Fuel vapor tube assembly |
| 4 |
- |
Fuel vapor tube assembly-to-fuel vapor tube quick connect coupling (part of 9C047) |
| 5 |
9K313 |
Fuel vapor tube |
| 6 |
9002 |
Fuel tank |
- For additional information, refer to the appropriate procedures.
