Seat - Rear: Notes

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

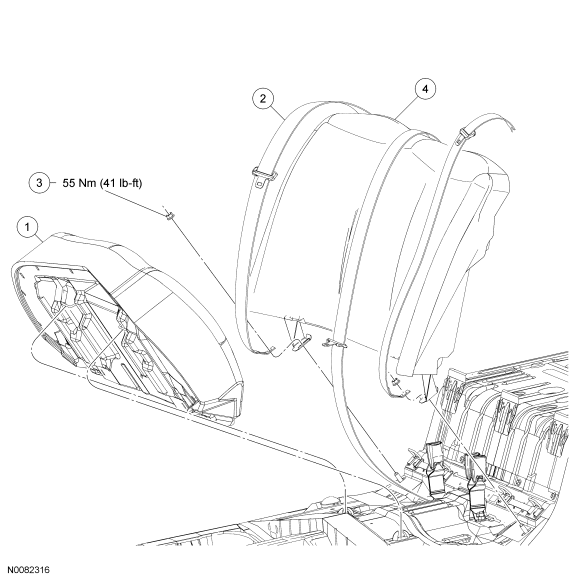

Fig 1: Exploded View Of Rear Seat With Torque Specifications
GF0046611Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Rear seat cushion
2 611B68 RH/ 611B69 LH Safety belt retractor, outer (2 required)
3 N800937 Rear seat backrest nut (2 required)
4 - Rear seat backrest
