Washer Pump & Reservoir: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Premium Windshield Washer Concentrate (US) ZC-32-A or B |
WSB-M8B16-A2 |

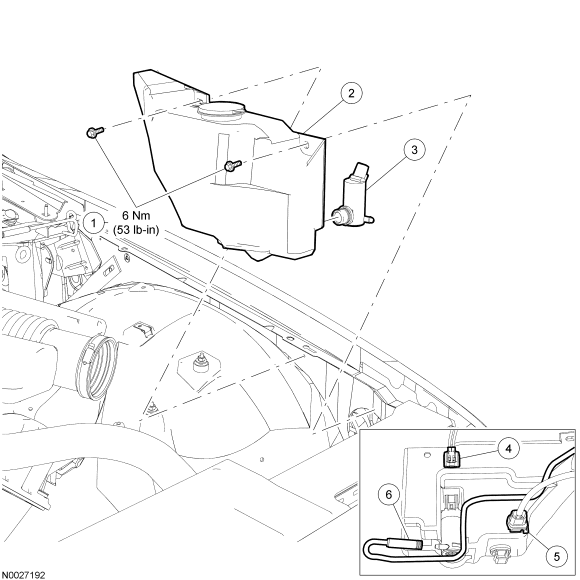

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Windshield washer pump reservoir bolts (2 required) |
| 2 | 17618 | Windshield washer pump reservoir |
| 3 | 17664 | Windshield washer pump |
| 4 | - | Windshield washer pump electrical connector (part of 14290) |
| 5 | - | Washer fluid level switch electrical connector (part of 14290) |
| 6 | 17K605 | Windshield washer hose |
