Instrument Cluster Finish Panel: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

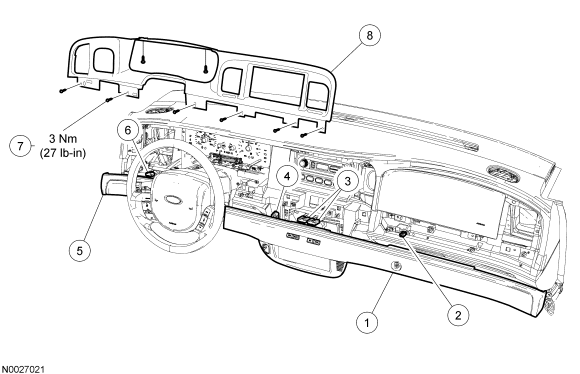

| Item | Part Number | Description |
|---|---|---|
| 1 | 046A62 | RH instrument panel finish panel |
| 2 | - | Passenger airbag module electrical connector (part of 14401) |
| 3 | - | Function set-up switch electrical connectors (2 required) (part of 14401) |
| 4 | - | Rear window defrost switch electrical connector (part of 14401) |
| 5 | 046A63 | LH instrument panel finish panel |
| 6 | 2A713 | Traction control switch electrical connector (part of 14401) |
| 7 | N807122 | Instrument cluster finish panel screw (8 required) |
| 8 | 044D70 | Instrument cluster finish panel |
