Console Finish Panel - Floor: Notes

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

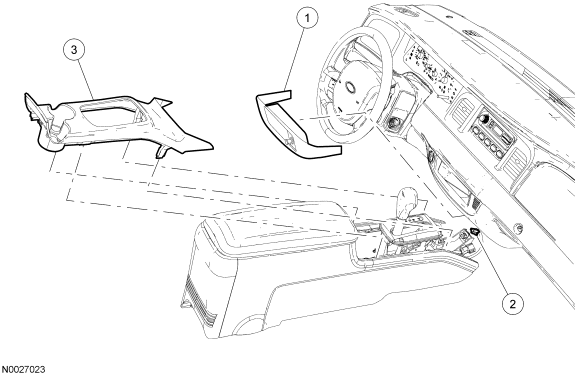

Fig 1: Exploded View Of Floor Console Finish Panel
GF0013222Courtesy of FORD MOTOR CO.
Item Part Number Description
1 13548 Instrument panel center finish panel
2 - Cigar lighter electrical connector (part of 14B079)
3 04567 Floor console finish panel
