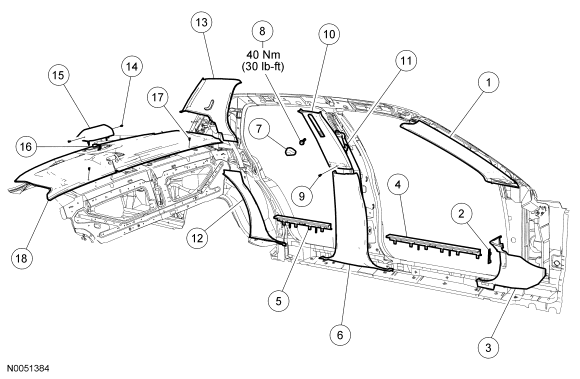

Interior Trim - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 03598 | Upper A-pillar trim panel |
| 2 | 16B999 | Hood release bezel |
| 3 | 02344 | Lower A-pillar trim panel |
| 4 | 13208 | Front door scuff plate |
| 5 | 13228 | Rear door scuff plate |
| 6 | 24346 | Lower B-pillar trim panel |
| 7 | 60262 | Safety belt D-ring cover |
| 8 | N807537 | D-ring bolt |
| 9 | N804992 | Upper B-pillar trim panel screw |
| 10 | 24346 | Upper B-pillar trim panel |
| 11 | 611B08 | Safety belt |
| 12 | 31012 | Lower quarter trim panel |
| 13 | 52018 | Rear quarter trim panel |
| 14 | N610127 | High mounted stoplamp screws (2 required) |
| 15 | 13A613 | High mounted stoplamp |
| 16 | 14A005 | High mounted stoplamp electrical connector |
| 17 | 390018 | Pin-type retainers (2 required) |
| 18 | 46668 | Parcel shelf |
- For additional information, refer to the appropriate procedures.
