Door Trim Panel - Front: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

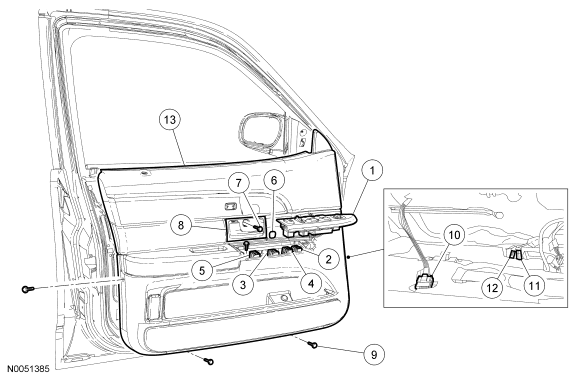

| Item | Part Number | Description |
|---|---|---|
| 1 | 14528 | Window control switch plate |
| 2 | - | Mirror control switch electrical connector (part of 14A005) |
| 3 | - | Door lock switch electrical connector (part of 14A005) |
| 4 | - | Master window control switch electrical connector (part of 14A005) |
| 5 | - | Master window lock-out switch electrical connector (part of 14A005) |
| 6 | 23862 | Door handle cup screw cover |
| 7 | W705133 | Door handle cup screw |
| 8 | 22634 | Door handle cup |
| 9 | W705133 | Front door trim panel screws (4 required) |
| 10 | - | Heated seat switch (if equipped) (part of 14C719) |
| 11 | - | Luggage compartment lid release switch electrical connector (part of 14A005) |
| 12 | - | Door entry lamp electrical connector (part of 14A005) |
| 13 | 23942 | Front door trim panel |
