Safety Belt Retractor - Rear: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

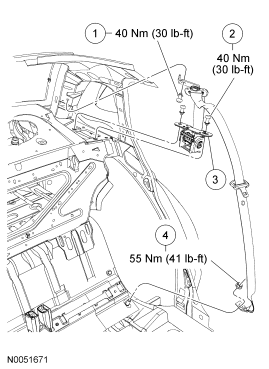

NOTE:
LH shown in illustration, RH similar.
NOTE:
Rear seat backrest is removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Bolt, safety belt guide (part of 611B68/611B69) |
| 2 | - | Bolt, safety belt retractor (part of 611B68/611B69) (2 required) |
| 3 | 611B68 RH/ 611B69 LH | Safety belt retractor |
| 4 | N800937 | Rear seat backrest nut |
