Passenger Air Bag Deactivation (Pad) Indicator
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

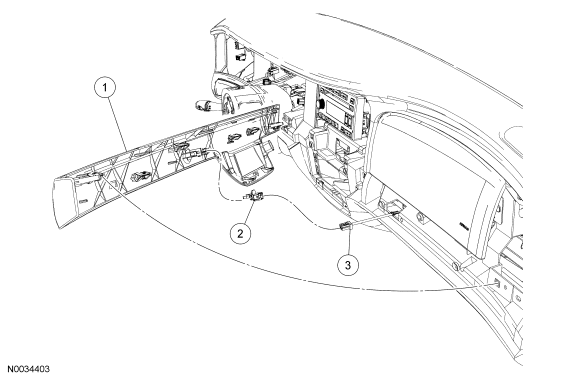

| Item | Part Number | Description |
|---|---|---|
| 1 | 046A62 | RH instrument panel trim panel |
| 2 | 14B268 | Passenger Air Bag Deactivation (PAD) indicator |
| 3 | - | PAD indicator electrical connector (part of 14401) |
NOTE:
The ignition must be in the OFF position Otherwise, a DTC will be set in the Restraints Control Module (RCM) and must be cleared before releasing the vehicle
- Turn the ignition OFF and wait one minute.
- Separate the RH instrument panel trim panel.
- Pull out to release the retaining clips.
- Slide the RH instrument panel trim panel slightly to the right, aligning the keyway.
- Pull out, separating the RH instrument panel trim panel.
- Disconnect the electrical connector, release the retainers and remove the Passenger Air Bag Deactivation (PAD) indicator from the instrument panel trim panel.
- To install, reverse the removal procedure.
