Supplemental Restraint System (SRS) Deactivation And Reactivation: Reactivation

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RCM fuse 22 (10A) from the CJB.
  2. Disconnect the battery ground cable and wait at least one minute. For additional information, refer to BATTERY, MOUNTING & CABLES article.
  3. Remove the Restraint System Diagnostic Tool from the driver seat side air bag electrical connector.
    4. Fig 1: Identifying Restraint System Diagnostic Tool
    GF0013444Courtesy of FORD MOTOR CO.
  4. Connect the driver seat side air bag module electrical connector, located at the lower rear of the seat cushion pan.
    5. Fig 2: Locating Driver Seat Side Air Bag Module Electrical Connector
    GF0013443Courtesy of FORD MOTOR CO.
  5. Remove the Restraint System Diagnostic Tool from the passenger seat side air bag electrical connector.
    6. Fig 3: Identifying Restraint System Diagnostic Tool
    GF0013442Courtesy of FORD MOTOR CO.
  6. Connect the passenger seat side air bag module electrical connector, located at the lower rear of the seat cushion pan.
    7. Fig 4: Locating Passenger Seat Side Air Bag Module Electrical Connector
    GF0013441Courtesy of FORD MOTOR CO.
  7. Disconnect the passenger air bag module jumper harness from the passenger air bag module electrical connector on the vehicle wiring harness.
    8. Fig 5: Passenger Air Bag Module Electrical Connector
    GF0046660Courtesy of FORD MOTOR CO.
  8. Separate the locking inserts and remove the Restraint System Diagnostic Tool from each of the passenger air bag module jumper harness electrical connectors.
    9. Fig 6: Identifying Diagnostic Tools 418-F395
    GF0013445Courtesy of FORD MOTOR CO.
    NOTE: The passenger air bag module jumper harness electrical connectors are unique and cannot be reversed when connected to the passenger air bag module. Match the electrical connector key to the keyway in the passenger air bag module. Do not force the electrical connectors into the passenger air bag module. Failure to follow this instruction may result in component damage or system failure.
    NOTE: Care must be taken when connecting the passenger air bag module electrical connectors to prevent damage to the electrical connector terminals and the passenger air bag module pins.
    NOTE: Carefully align the locking inserts to the electrical connectors or damage may result.
  9. Align and connect the passenger air bag module jumper harness electrical connectors to the passenger air bag module and install the locking inserts.

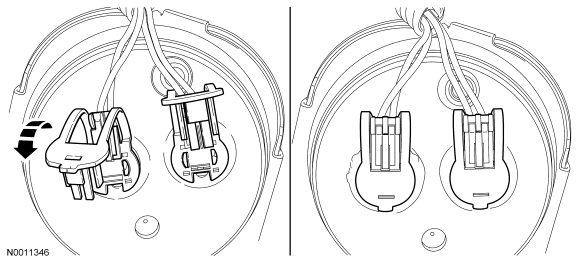

    10. Fig 7: Identifying Air Bag Module Jumper Harness Electrical Connector Locking Insert
    GF0013446Courtesy of FORD MOTOR CO.
  10. Make sure the J-nuts on the passenger air bag module are fully seated into the slots.
    11. NOTE: Do not handle the passenger air bag module by grabbing the edges of the deployment doors. Damage to the air bag module may occur.
  11. Install the passenger air bag module into the instrument panel.
    1. Position the passenger air bag module into the instrument panel.
    2. Install the 2 bolts.
      • Tighten to 3 Nm (27 lb-in).
    12. Fig 8: Passenger Air Bag Module Bolts
    GF0013447Courtesy of FORD MOTOR CO.
  12. Through the glove compartment opening, install the 2 passenger air bag module bolts.
    • Tighten to 9 Nm (80 lb-in).
    13. Fig 9: Passenger Air Bag Module Bolts
    GF0013435Courtesy of FORD MOTOR CO.
  13. Connect the passenger air bag module electrical connector and attach the pin-type retainer to the bracket.
    14. Fig 10: Passenger Air Bag Module Electrical Connector
    GF0013434Courtesy of FORD MOTOR CO.
  14. Install the trim panel.
    1. Connect the rear window defrost switch electrical connector.
    2. If equipped, connect the clock electrical connector.
    3. Connect the PAD indicator.
    4. Align the retaining clips, slide the trim panel to the left and push in, seating the retaining clips.
    15. Fig 11: Trim Panel Electrical Connectors
    GF0013432Courtesy of FORD MOTOR CO.
  15. Connect the glove compartment isolator. Close the glove compartment.
  16. Remove the Restraint System Diagnostic Tool from each of the clockspring electrical connectors at the top of the steering column.
    17. Fig 12: Identifying Restraint System Diagnostic Tools
    GF0013430Courtesy of FORD MOTOR CO.
  17. Connect the driver air bag module.
    1. Connect the horn electrical connector.
      2. NOTE: The clockspring electrical connectors are unique and cannot be reversed when connected to the driver air bag module. Match the electrical connector key to the keyway in the driver air bag module. Do not force the electrical connectors into the driver air bag module. Damage to the connector or component may occur.
    2. Connect the driver air bag module electrical connectors as noted during removal.
    3. Install the driver air bag module electrical wiring into the driver air bag wiring clip.
    18. Fig 13: Identifying Driver Air Bag Module Components
    GF0013448Courtesy of FORD MOTOR CO.
    NOTE: With the driver air bag module held as close to the steering wheel as possible, take up the slack in the wiring by gently tucking any excess length into the pocket at the bottom of the steering wheel before rocking the driver air bag module into place.
  18. Align the 4 driver air bag module locking pins to the openings in the steering wheel and position the driver air bag module in place.

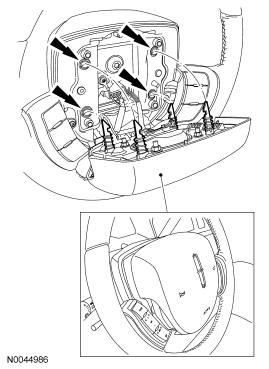

    19. Fig 14: Identifying Driver Air Bag Module Locking Pins
    GF0013449Courtesy of FORD MOTOR CO.
  19. With the locking pins aligned and the driver air bag module positioned to the steering wheel, push inward, seating the 4 locking pins to the spring clips.
    • An audible click should be heard when the driver air bag module locking pins are seated in place to the spring clip. When the 4 locking pins are seated in place, there should be an even uniform gap between the driver air bag module trim cover and the steering wheel.
    20. Fig 15: Pushing In On Driver Air Bag Module
    GF0013450Courtesy of FORD MOTOR CO.
    WARNING: Remove restraint system diagnostic tools from the vehicle prior to road testing. If tools are not removed, the supplemental restraint system (SRS) device may not deploy in a crash. Failure to follow this instruction may result in serious personal injury or death in a crash and possibly violate vehicle safety standards.
  20. Make sure all Restraint System Diagnostic Tool(s) that may have been installed during the repair have been removed from the vehicle and all SRS components are connected.
  21. Turn the ignition switch from OFF to ON.
  22. Install the RCM fuse 22 (10A) to the CJB and install the cover.
    23. WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any air bag module when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
  23. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING & CABLES article.
  24. Prove out the SRS as follows:

    Turn the ignition key from ON to OFF. Wait 10 seconds, then turn the key back to ON and visually monitor the air bag warning indicator with the air bag modules installed. The air bag warning indicator will light continuously for approximately 6 seconds and then turn off. If an air bag SRS fault is present, the air bag warning indicator will:

    - fail to light.

    - remain lit continuously.

    - flash.

    The flashing might not occur until approximately 30 seconds after the ignition switch has been turned from the OFF to the ON position. This is the time required for the RCM to complete the testing of the SRS. If the air bag warning indicator is inoperative and a SRS fault exists, a chime will sound in a pattern of 5 sets of 5 beeps. If this occurs, the air bag warning indicator and any SRS fault discovered must be diagnosed and repaired.

    Clear all continuous DTCs from the RCM using a scan tool.
