Supplemental Restraint System (SRS) Deactivation And Reactivation: Deactivation

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always carry or place a live air bag module with the air bag and deployment door/trim cover/tear seam pointed away from the body. Do not set a live air bag module down with the deployment door/trim cover/tear seam face down. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
WARNING: Never probe the electrical connectors on air bag, safety canopy or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.
WARNING: To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.
NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition switch is ON.
NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
  1. Turn all vehicle accessories OFF.
  2. Turn the ignition switch to OFF.
  3. At the Central Junction Box (CJB), located below the LH side of the instrument panel, remove the cover and the RCM fuse 22 (10A) from the CJB. For additional information, refer to the appropriate SYSTEM WIRING DIAGRAMS article .
  4. Turn the ignition ON and visually monitor the air bag warning indicator for at least 30 seconds. The air bag warning indicator will remain lit continuously (no flashing) if the correct RCM fuse has been removed. If the air bag warning indicator does not remain lit continuously, remove the correct RCM fuse before proceeding.
  5. Turn the ignition OFF.
    6. WARNING: Always deplete the backup power supply before repairing or installing any new front or side air bag supplemental restraint system (SRS) component and before servicing, removing, installing, adjusting or striking components near the front or side impact sensors or the restraints control module (RCM). Nearby components include doors, instrument panel, console, door latches, strikers, seats and hood latches.

    See DESCRIPTION AND OPERATION  for location of the RCM and impact sensor(s).

    To deplete the backup power supply energy, disconnect the battery ground cable and wait at least 1 minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

    Failure to follow these instructions may result in serious personal injury or death in the event of an accidental deployment.

  6. Disconnect the battery ground cable and wait at least one minute. For additional information, refer to BATTERY, MOUNTING & CABLES article.
    7. NOTE: A tool that has a blunt end, such as a 4.0 mm (0.15 in) Allen wrench, is better able to disengage the steering wheel spring clip from the driver air bag module locking pins.
  7. Using a 4 mm (0.15 in) Allen wrench or suitable tool, place 2 marks on the tool as an aid to remove the driver air bag module. One mark should be approximately 35 mm (1.37 in) from the end of the tool with the second mark approximately 45 mm (1.77 in) from the end of the tool.
    8. Fig 1: Identifying Allen Wrench (With Specifications)
    GF0013422Courtesy of FORD MOTOR CO.
    NOTE: The steering wheel rear cover has internal guides that assist in directing the tool to the correct location. Allow the steering wheel rear cover to guide the tool, minimal force is needed.
  8. Gently  insert the tool into a steering wheel rear cover upper access hole until the end of the tool comes into contact with an obstruction. The 45 mm (1.77 in) mark on the tool should be even or close to even with the steering wheel rear cover. If the 45 mm (1.77 in) mark on the tool is not even or close to even with the steering wheel rear cover, remove the tool from the steering wheel and carry out the step once again to correctly position the tool.
    • If the 45 mm (1.77 in) mark on the tool goes into the steering wheel rear cover, the tool was directed past the steering wheel spring clip. Use a tool of a slightly larger diameter or, using the internal guides of the steering wheel rear cover, insert the tool to the 45 mm (1.77 in) mark and proceed to the next step.
    9. Fig 2: Inserting Allen Wrench
    GF0013423Courtesy of FORD MOTOR CO.
    NOTE: The steering wheel is removed for clarity. The upper corner of the steering wheel rear cover is cut away to show the internal guides and the steering wheel spring clip.
  9. With the tool correctly positioned, remove the tool approximately 2-3 mm (0.07-0.11 in) from the access hole then gently push the tool forward (toward front of vehicle). This puts the tool in the best position to disengage the steering wheel spring clip from the driver air bag module locking pin.
    10. Fig 3: Positioning Allen Wrench
    GF0013424Courtesy of FORD MOTOR CO.
    NOTE: Make sure to disengage the steering wheel spring clip from the driver air bag module locking pin before gently pulling the corresponding corner of the driver air bag module. No or very little force is needed to separate the corresponding corner of the driver air bag module from the steering wheel once the spring clip is disengaged from the locking pin.
    NOTE: When the steering wheel spring clip is disengaged from the first locking pin, the corresponding corner of the driver air bag module will only separate 2-4 mm (0.07-0.15 in) from the steering wheel. The driver air bag module will separate more noticeably as subsequent locking pins are disengaged.
  10. Push the tool deeper into the access hole (approximately 4-8 mm [0.15-0.31 in]) with enough force to disengage the steering wheel spring clip from the driver air bag module locking pin. The corresponding corner of the driver air bag module should pop up once the spring clip is disengaged from the locking pin. Gently  pull the corresponding corner of the driver air bag module to make sure the locking pin does not reengage the spring clip. Remove the tool from the access hole. Discontinue pulling on the corresponding corner of the driver air bag module.
    • If the corresponding corner of the driver air bag module does not easily separate from the steering wheel, the spring clip is not disengaged from the locking pin. Repeat the necessary steps to correctly position the tool and disengage the spring clip from the locking pin.
    11. Fig 4: Repositioning Allen Wrench
    GF0013425Courtesy of FORD MOTOR CO.
    NOTE: The steering wheel rear cover has internal guides that assist in directing the tool to the correct location. Allow the steering wheel rear cover to guide the tool, minimal force is needed.
  11. Working on the same side of the steering wheel, gently  insert the tool into a steering wheel rear cover lower access hole until the end of the tool comes into contact with an obstruction. The 35 mm (1.37 in) mark on the tool should be even or close to even with the steering wheel cover. If the 35 mm (1.37 in) mark on the tool is not even or close to even with the steering wheel cover, remove the tool from the access hole and carry out the step once again to correctly position the tool.
    • If the 35 mm (1.37 in) mark on the tool goes into the steering wheel rear cover, the tool was directed past the steering wheel spring clip. Use a tool of a slightly larger diameter or, using the internal guides of the steering wheel rear cover, insert the tool to the 35 mm (1.37 in) mark and proceed to the next step.
    12. Fig 5: Inserting Allen Wrench
    GF0013426Courtesy of FORD MOTOR CO.
    NOTE: The steering wheel is removed for clarity. The lower corner of the steering wheel rear cover is cut away to show the internal guides and the steering wheel spring clip.
  12. With the tool correctly positioned, remove the tool approximately 2-3 mm (0.07-0.11 in) from the access hole then gently push the tool forward (toward front of vehicle). This puts the tool in the best position to disengage the steering wheel spring clip from the driver air bag module locking pin.
    13. Fig 6: Positioning Allen Wrench
    GF0013427Courtesy of FORD MOTOR CO.
    NOTE: Make sure to disengage the steering wheel spring clip from the driver air bag module locking pin before gently pulling the corresponding corner of the driver air bag module. No or very little force is needed to separate the corresponding corner of the driver air bag module from the steering wheel once the spring clip is disengaged from the locking pin.
  13. Push the tool deeper into the access hole (approximately 3-6 mm [0.11-0.23 in]) with enough force to disengage the steering wheel spring clip from the driver air bag module locking pin. The corresponding corner of the driver air bag module should pop up once the spring clip is disengaged from the locking pin. Gently  pull the corresponding corner of the driver air bag module to make sure the locking pin does not reengage the spring clip. Remove the tool from the access hole. Discontinue pulling on the corresponding corner of the driver air bag module.
    • If the corresponding corner of the driver air bag module does not easily separate from the steering wheel the spring clip is not disengaged from the locking pin. Repeat the necessary steps to correctly position the tool and disengage the spring clip from the locking pin.
    14. Fig 7: Reinserting Allen Wrench
    GF0013428Courtesy of FORD MOTOR CO.
    NOTE: Disengage the steering wheel spring clips from the 2 locking pins on one side of the driver air bag module before proceeding to the other side.
  14. Repeat the above steps to disengage the 2 remaining driver air bag module locking pins.
    15. NOTE: The driver air bag electrical connectors cannot be reversed at installation. Note the electrical connectors position for installation.
  15. Disconnect and remove the driver air bag module.
    1. Release the driver air bag module electrical wiring from the driver air bag wiring clip.
    2. Squeeze the tabs and disconnect the driver air bag module electrical connector.
    3. Squeeze the tabs and disconnect the driver air bag module electrical connector.
    4. Disconnect the horn electrical connector.
    5. Remove the driver air bag module.
    16. Fig 8: Identifying Driver Air Bag Module Components
    GF0013429Courtesy of FORD MOTOR CO.
  16. Attach a Restraint System Diagnostic Tool to each of the clockspring electrical connectors at the top of the steering column.
    17. Fig 9: Identifying Restraint System Diagnostic Tools
    GF0013430Courtesy of FORD MOTOR CO.
  17. Separate the trim panel.
    • Pull out to release the retaining clips.
    • Slide the trim panel slightly to the right, aligning the keyway.
    • Pull out, separating the trim panel from the instrument panel.
    18. Fig 10: Trim Panel
    GF0013431Courtesy of FORD MOTOR CO.
  18. Remove the trim panel.
    1. Disconnect the rear window defrost switch electrical connector.
    2. If equipped, disconnect the clock electrical connector.
    3. Disconnect the Passenger Air Bag Deactivation (PAD) indicator.
    4. Remove the trim panel.
    19. Fig 11: Trim Panel Electrical Connectors
    GF0013432Courtesy of FORD MOTOR CO.
  19. Open the glove compartment. Disconnect the glove compartment isolator.
  20. While pushing in on the 2 glove compartment door tabs, position the glove compartment downward.
    21. Fig 12: Glove Compartment Door Tab
    GF0013433Courtesy of FORD MOTOR CO.
  21. Looking up into the front center of the glove compartment opening, separate the passenger air bag module electrical connector and pin-type retainer from the bracket. Disconnect the passenger air bag module electrical connector.
    22. Fig 13: Passenger Air Bag Module Electrical Connector
    GF0013434Courtesy of FORD MOTOR CO.
  22. Through the glove compartment opening, remove the 2 passenger air bag module bolts.
    23. Fig 14: Passenger Air Bag Module Bolts
    GF0013435Courtesy of FORD MOTOR CO.
    NOTE: Do not handle the passenger air bag module by grabbing the edges of the deployment doors. Damage to the air bag module may occur.
  23. Remove the passenger air bag module.
    1. Remove the 2 passenger air bag module bolts.
    2. Placing one hand in the glove compartment opening, push the passenger air bag module out and remove it.
    24. Fig 15: Passenger Air Bag Module Bolts
    GF0013436Courtesy of FORD MOTOR CO.
    NOTE: Care must be taken to prevent damage to the passenger air bag module electrical connectors and locking inserts.
  24. Gently pry each side of the passenger air bag module jumper harness electrical connector locking insert, working alternately side to side, until the locking insert separates from the electrical connector.
    • Repeat to separate the locking insert from the remaining passenger air bag module jumper harness electrical connector.

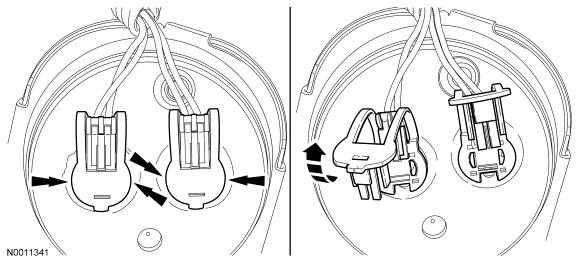

    25. Fig 16: Identifying Air Bag Module Jumper Harness Electrical Connector Locking Insert
    GF0013437Courtesy of FORD MOTOR CO.
    NOTE: Care must be taken to prevent damage to the passenger air bag module electrical connectors.
  25. Using suitable tools (such as small screwdrivers), carefully depress the 2 locking tabs on the side of the passenger air bag module jumper harness electrical connector and disconnect the electrical connector.
    • Repeat to disconnect the remaining passenger air bag module jumper harness electrical connector and remove the passenger air bag module jumper harness from the passenger air bag module.
    26. Fig 17: Depressing Locking Tabs On Side Of Passenger Air Bag Module Jumper Harness Electrical Connector
    GF0013438Courtesy of FORD MOTOR CO.
    NOTE: Carefully align the locking inserts to the electrical connectors or damage may result.
  26. Attach a Restraint System Diagnostic Tool to each of the 2 passenger air bag module jumper harness electrical connectors and align and install the locking inserts to the electrical connectors.

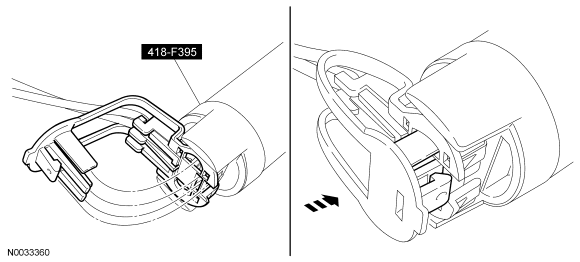

    27. Fig 18: Identifying Restraint System Diagnostic Tool
    GF0013439Courtesy of FORD MOTOR CO.
  27. Connect the passenger air bag module jumper harness to the passenger air bag module electrical connector on the vehicle wiring harness.
    28. Fig 19: Identifying Diagnostic Tools 418-F395 And Passenger Air Bag Module Electrical Connector
    GF0013440Courtesy of FORD MOTOR CO.
  28. Disconnect the passenger seat side air bag module electrical connector, located at the lower rear of the seat cushion pan.
    29. Fig 20: Locating Passenger Seat Side Air Bag Module Electrical Connector
    GF0013441Courtesy of FORD MOTOR CO.
  29. Attach the Restraint System Diagnostic Tool to the seat harness side of the passenger seat side air bag module electrical connector.
    30. Fig 21: Identifying Restraint System Diagnostic Tool
    GF0013442Courtesy of FORD MOTOR CO.
  30. Disconnect the driver seat side air bag module electrical connector, located at the lower rear of the seat cushion pan.
    31. Fig 22: Locating Driver Seat Side Air Bag Module Electrical Connector
    GF0013443Courtesy of FORD MOTOR CO.
  31. Attach the Restraint System Diagnostic Tool to the seat harness side of the driver seat side air bag module electrical connector.
    32. Fig 23: Identifying Restraint System Diagnostic Tool
    GF0013444Courtesy of FORD MOTOR CO.
  32. Install the RCM fuse 22 (10A) to the CJB.
  33. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING & CABLES article.
