Air Bag And Safety Belt PRETENSIONER Supplemental Restraint System (SRS)
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
The Supplemental Restraint System (SRS) is designed to provide increased collision protection for front seat occupants in addition to that provided by the 3-point safety belt system. Safety belt use is necessary to obtain the best occupant protection and to receive the full advantage of the SRS.
The serviceable air bag and safety belt pretensioner SRS components are shown in the following illustrations.

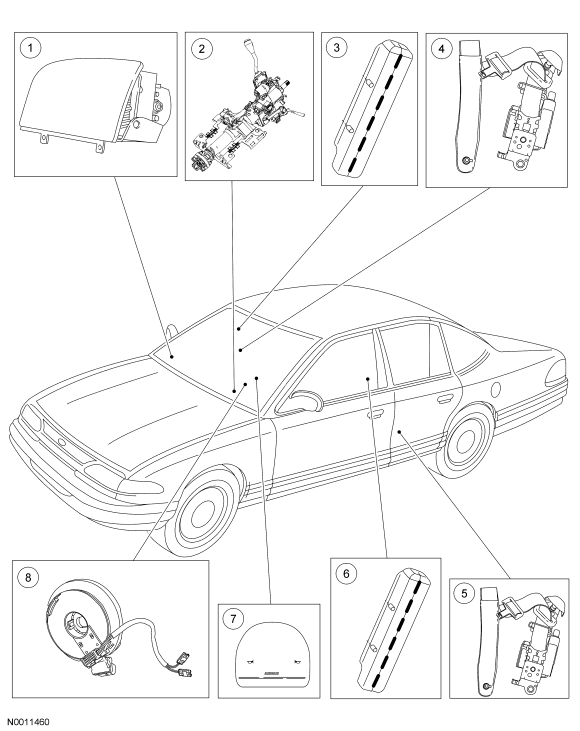

Fig 1: Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS) Deployable Components
| Item | Part Number | Description |
|---|---|---|
| 1 | 044A74 | Passenger air bag module |
| 2 | 3C529 | Deployable steering column squib (part of steering column) |
| 3 | 611D10 | Passenger seat side air bag module |
| 4 | 611B08 | Passenger safety belt retractor pretensioner |
| 5 | 611B09 | Driver safety belt retractor pretensioner |
| 6 | 611D11 | Driver seat side air bag module |
| 7 | 043B13 | Driver air bag module |
| 8 | 14A664 | Clockspring |

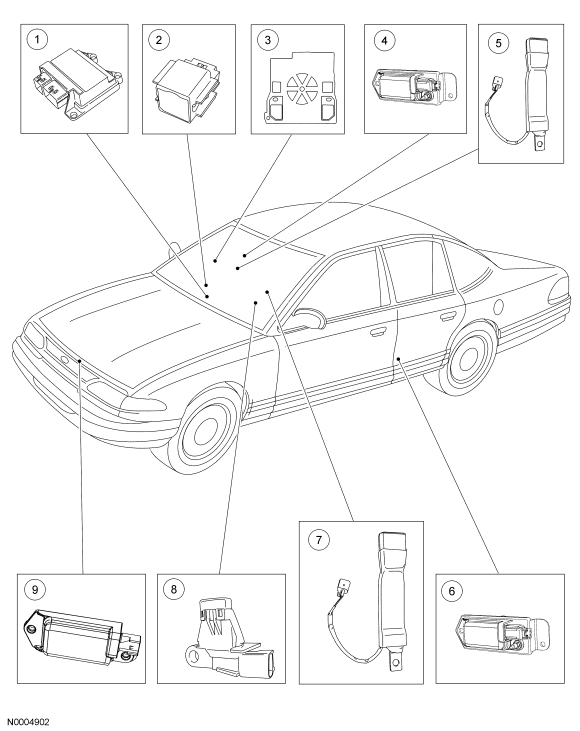

| Item | Part Number | Description |
|---|---|---|
| 1 | 14B321 | Restraints Control Module (RCM) |
| 2 | 14B418 | Passenger Air Bag Deactivation (PAD) indicator |
| 3 | 14B422 | Occupant Classification Sensor (OCS) System |
| 4 | 14B345 | Passenger side impact sensor |
| 5 | 61202 | Passenger seat safety belt buckle with usage detection switch and belt tension sensor |
| 6 | 14B345 | Driver side impact sensor |
| 7 | 61202 | Driver seat safety belt buckle with usage detection switch |
| 8 | 14B416 | Seat position sensor |
| 9 | 14B006 | Front impact severity sensor (2 required) |
