Window Glass - Rear: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Rotunda Pneumatic Knife with Offset Blade | 107-R1511 or equivalent | |
| The Pumper | 164-R2459 or equivalent | |
| Rotunda Interior Auto Glass Cut-Out Knife Kit | 164-R2450 or equivalent |
Material
| Item | Specification |
|---|---|
| DOW AUTOMOTIVE 2-HOUR CURE | - |
| Dow Urethane Adhesive Betaseal® Express | - |
| Dow Urethane One Step Glass Primer Betaprime® 5500 / 5500A / 5500SA | - |
| SIKA 2-HOUR CURE | - |
| Sika Urethane Adhesive Sika Tack ASAP | - |
| Sika Urethane Metal and Glass Primer Sika 206 G+P | - |
| Ultra-Clear Spray Glass Cleaner ZC-23 |
ESR-M14P5-A |

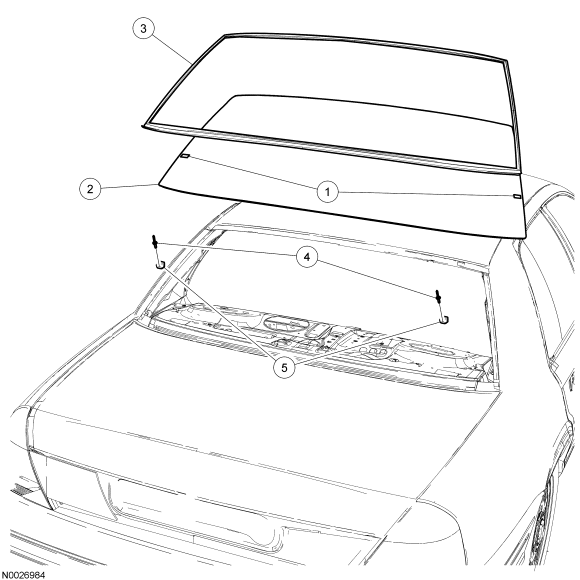

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Rear window glass electrical connectors (part of 14A005) |
| 2 | 42006 | Rear window glass |
| 3 | 42404 | Rear window glass moulding |
| 4 | N805227 | Rear window glass rivets (2 required) |
| 5 | 42308 | Rear window glass stops (2 required) |
