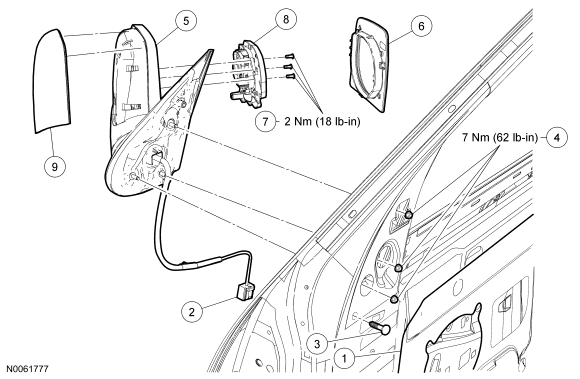

Exterior Mirrors - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Water shield |
| 2 | - | Electrical connector (part of 14A005) |
| 3 | - | Pin-type retainer (1 required) |
| 4 | N621906 | Exterior mirror nuts (3 required) |
| 5 | 17682 | Exterior mirror assembly |
| 6 | 17K707 | Exterior mirror glass |
| 7 | - | Exterior mirror motor screws (3 required) |
| 8 | 17D696 | Exterior mirror motor |
| 9 | 17D742 | Exterior mirror cover |
- For additional information, refer to the appropriate procedures.
