Removal And Installation
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

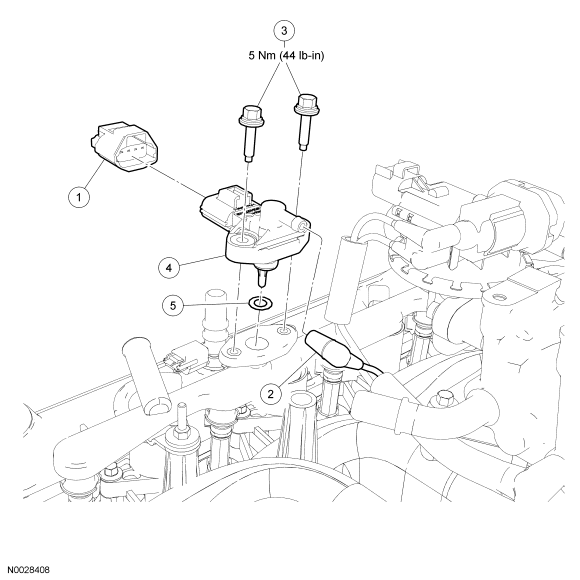

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Fuel rail pressure and temperature sensor electrical connector |
| 2 | 9E498 | Fuel rail pressure and temperature sensor vacuum connector |
| 3 | N808874 | Fuel rail pressure and temperature sensor bolts (2 required) |
| 4 | 9F972 | Fuel rail pressure and temperature sensor |
| 5 | - | Fuel rail pressure and temperature sensor O-ring |
- Release the fuel system pressure. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION article.
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES article.
- Disconnect the fuel rail pressure and temperature sensor electrical connector.
- Disconnect the fuel rail pressure and temperature sensor vacuum connector.
- Remove the 2 bolts and the fuel rail pressure and temperature sensor.
- To install, tighten to 5 Nm (44 lb-in).
- Remove and discard the O-ring seal.
- Install a new O-ring seal and lubricate it with clean engine oil.
- To install, reverse the removal procedure.
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
