External Sealing
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not try to stop a fluid leak by increasing the torque beyond specifications. This may cause damage to the transmission case threads.
The transmission has the following parts to prevent external fluid leakage:
- Gaskets
- Lip-type seals
- O-ring seals
- Seal rings
- Seal grommets
- Seal washers
- Thread sealant

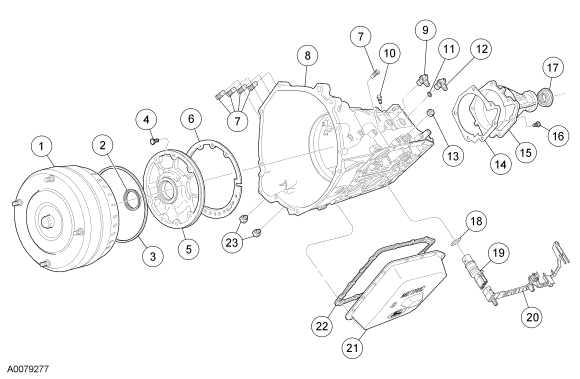

| Item | Part Number | Description |
|---|---|---|
| 1 | 7902 | Torque converter |
| 2 | 7A248 | Front pump seal |
| 3 | 7A248 | Front pump seal |
| 4 | N605789-S101 | Bolt |
| 5 | 7A106 | Front pump body assembly |
| 6 | 7A136 | Pump gasket |
| 7 | 390318-S2 | Pipe plugs - 1/8-27 Dryseal tapered |
| 8 | 7005 | Case |
| 9 | 7H103 | Turbine shaft speed (TSS) sensor |
| 10 | 7034 | Vent |
| 11 | N811757-S100 | Speed sensor seal |
| 12 | 7H103 | Output shaft speed (OSS) sensor |
| 13 | 7B498 | Manual control lever seal assembly |
| 14 | 7086 | Extension housing gasket |
| 15 | 7A039 | Extension housing |
| 16 | N803737-S1101 | Bolt - M8-1.25 x 30 |
| 17 | 7052 | Oil seal |
| 18 | 7Z276 | Seal - bulkhead assembly |
| 19 | 7G276 | Bulkhead assembly wiring connector |
| 20 | 7G276 | Molded lead frame |
| 21 | 7A194 | Transmission fluid pan |
| 22 | 7A191 | Gasket |
