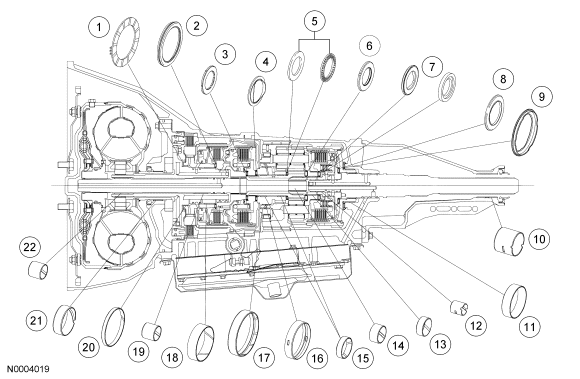

Bushings, Bearing And Thrust Washer Locator
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7D014 | Pump No. 1 thrust washer (select fit) |
| 2 | 7A166 | Forward clutch No. 2 bearing and race assembly |
| 3 | 7F231 | Forward clutch bearing and race assembly - front No. 3 |
| 4 | 7F244 | Forward clutch hub bearing and race assembly No. 4 |
| 5 | 7F244 | Forward clutch sun gear bearing and race assembly No. 5 (2 piece) |
| 6 | 7F241 | Planet assembly bearing and race No. 6 |
| 7 | 7F243, 7F237 | Direct clutch inner bearing, race assembly No. 7 and direct clutch inner bearing support No. 7 |
| 8 | 7F240 | Direct clutch outer bearing and race assembly No. 8 |
| 9 | 7F242 | Outer bearing and race assembly - rear No. 9 |
| 10 | - | Extension bushing (part of 7A039) |
| 11 | 7025 | Case bushing |
| 12 | 7B233 | Output shaft bushing |
| 13 | 7B375 | Planet carrier bushing - rear |
| 14 | 7F209 | Forward clutch sun gear bushing |
| 15 | 7N193 | Reverse clutch sun gear bushing |
| 16 | 7B374 | Carrier bushing - front |
| 17 | 7A132 | Planetary support bushing |
| 18 | 7F218 | Reverse clutch drum bushing - rear |
| 19 | 7B261 | Front pump support bushing |
| 20 | 7F217 | Reverse clutch drum bushing - front |
| 21 | 7B258 | Front pump bushing |
| 22 | 7B261 | Front pump support bushing |
