Wheel Bearing And Wheel Hub: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

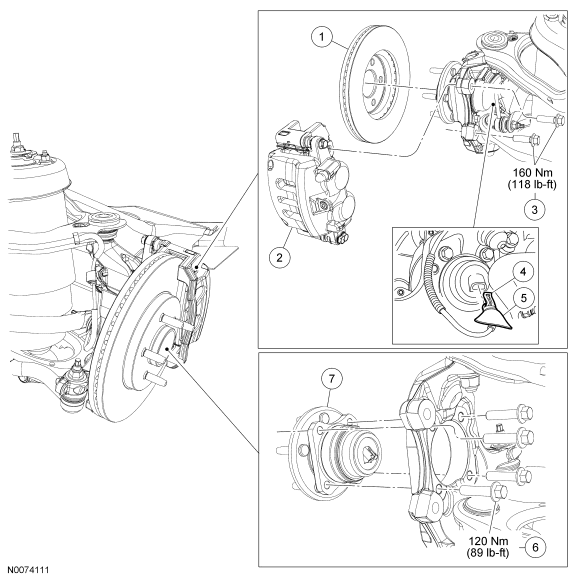

| Item | Part Number | Description |
|---|---|---|
| 1 | 1125 | Brake disc |
| 2 | 2B120 LH/ 2B121 RH | Brake caliper |
| 3 | W707589 | Brake caliper anchor plate bolts (2 required) |
| 4 | - | Wheel speed sensor electrical connector (part of 2C204) |
| 5 | - | Wheel speed sensor electrical connector rubber splash shield (part of 2C204) |
| 6 | W709529 | Wheel bearing and wheel hub bolt |
| 7 | 1104 | Wheel bearing and wheel hub |
