Parking Brake Shoes: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Temperature Nickel Anti-Seize Lubricant XL-2 (US); CXG-2-B (Canada) |
ESE-M12A4-A |

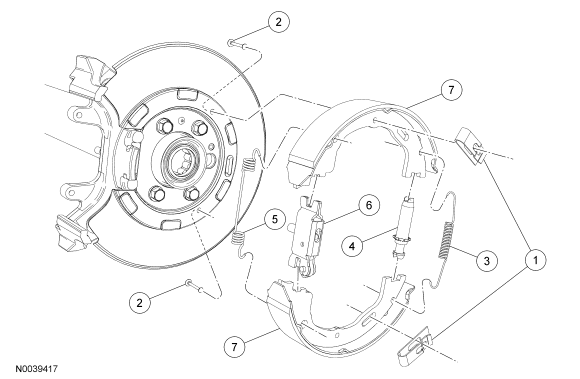

NOTE:
Wheel hub removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Parking brake shoe hold-down springs (2 required) (part of 2A225) |
| 2 | - | Parking brake shoe hold-down spring anchors (2 required) (part of 2A225) |
| 3 | - | Parking brake shoe adjusting spring (part of 2A225) |
| 4 | - | Parking brake adjuster (part of 2A225) |
| 5 | - | Parking brake shoe return spring (part of 2A225) |
| 6 | - | Parking brake actuator (part of 2A225) |
| 7 | 2N712 | Parking brake shoes (2 required) |
