Parking Brake Cable - Rear: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

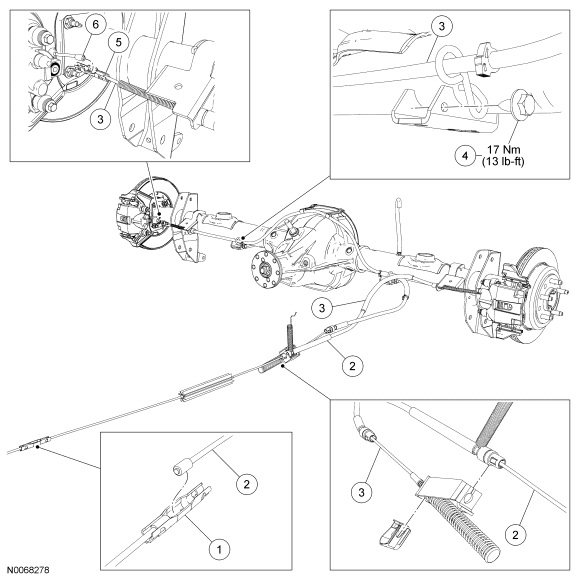

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Front parking brake cable-to-LH rear parking brake cable union (part of 2A635) |
| 2 | 2A635 | LH rear parking brake cable |
| 3 | 2A635 | RH rear parking brake cable |
| 4 | N802212 | RH rear parking brake cable wire-form bracket bolt (2 required) |
| 5 | - | Rear parking brake cable-to-rear parking brake cable extension union (part of 2A815) |
| 6 | 2A815 | Rear parking brake cable extension |
