Brake Pedal and Bracket: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

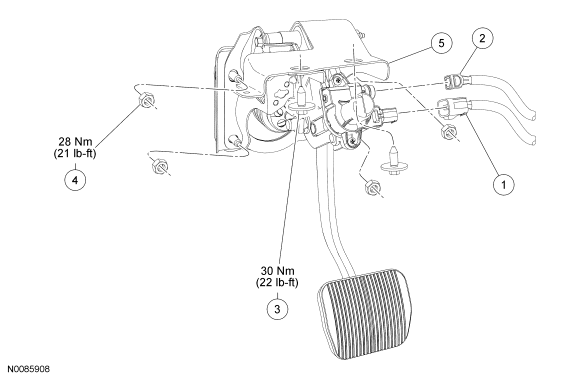

Adjustable brake pedal with memory shown in illustration, non-memory adjustable brake pedal similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Adjustable brake pedal electrical connector (part of 14A005) |
| 2 | 2C430 | Adjustable brake pedal motor drive cable |
| 3 | N811148 | Brake pedal bracket bolt (2 required) |
| 4 | 385759 | Brake pedal bracket nut (4 required) |
| 5 | 2450 | Brake pedal and bracket |
