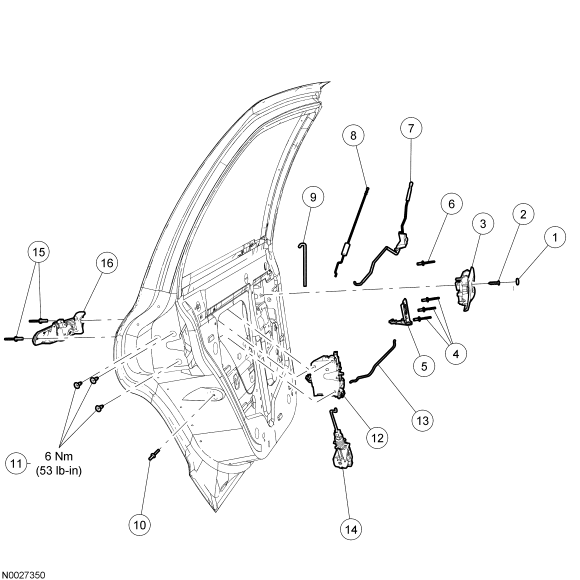

Rear Door Handles, Locks & Latches - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 5422642/ 5422643 | Interior door handle screw cover |
| 2 | W505584 | Interior door handle screw |
| 3 | 54266B40/ 54266B41 | Interior door handle (RH/LH) |
| 4 | W525172 | Interior door handle remote control rivets (3 required) |
| 5 | 54264B52/ 54264B53 | Interior door handle remote control (RH/LH) |
| 6 | W705528 | Lock rod bellcrank rivet |
| 7 | 264B14/ 264B15 | Lock rod and bellcrank (RH/LH) |
| 8 | 5421850/ 5421851 | Push button rod (police only) (RH/LH) |
| 9 | 5426596 | Exterior door handle actuating rod |
| 10 | W710079-S300 | Door lock actuator rivet |
| 11 | W710772-S900 | Rear door latch screws (3 required) |
| 12 | 5426412/ 5426413 | Rear door latch (RH/LH) |
| 13 | 5426442/ 5426443 | Interior door handle actuating rod (RH/LH) |
| 14 | 5426594/ 5426595 | Door lock actuator (RH/LH) |
| 15 | W525172 | Exterior door handle rivets (2 required) |
| 16 | 5426604/ 5426605 | Exterior door handle (RH/LH) |
- For additional information, refer to the appropriate procedures.
