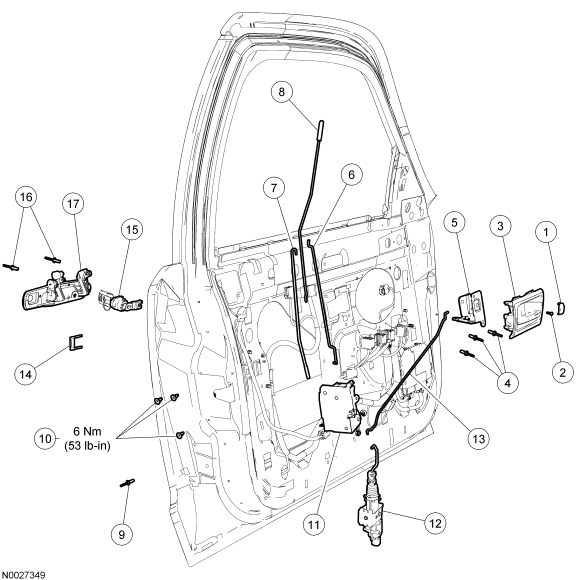

Front Door Handles, Locks & Latches - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 5422642 | Interior door handle cup cover |
| 2 | W505584 | Interior door handle screw |
| 3 | 54224A52/ 54224A53 | Interior door handle (RH/LH) |
| 4 | W525172 | Interior door handle remote control rivets (3 required) |
| 5 | 54219A64/ 54219A65 | Interior door handle remote control (RH/LH) |
| 6 | 5422152/ 5422153 | Door lock cylinder actuating rod (RH/LH) |
| 7 | 5422134/ 5422135 | Exterior door handle actuating rod (RH/LH) |
| 8 | 22850/22851 | Door lock push button rod (RH/LH) |
| 9 | W710079-S300 | Door lock actuator rivet |
| 10 | W710772-S900 | Front door latch screws (3 required) |
| 11 | 5421812/ 5421813 | Front door latch (RH/LH) |
| 12 | 54218A42 | Door lock actuator |
| 13 | 5421940/ 5421941 | Interior door handle remote control actuating rod (RH/LH) |
| 14 | 5422023 | Door lock cylinder clip |
| 15 | 22050 | Door lock cylinder |
| 16 | W585172 | Exterior door handle rivets (2 required) |
| 17 | 5422404/ 5422405 | Exterior door handle (RH/LH) |
- For additional information, refer to the appropriate procedures.
