Axle Shaft: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

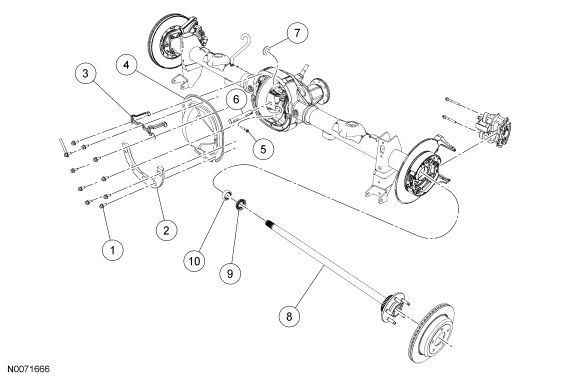

| Item | Part Number | Description |
|---|---|---|
| 1 | 4346 | Differential housing cover bolt (10 required) |
| 2 | 4C036 | Axle guard (if equipped) |
| 3 | 2860 | Park brake cable bracket |
| 4 | 4033 | Differential housing cover |
| 5 | 4241 | Differential pinion shaft lock bolt |
| 6 | 4211 | Differential pinion shaft |
| 7 | 4N237 | Axle shaft U-washer |
| 8 | 4234 | Axle shaft |
| 9 | 1177 | Wheel bearing oil seal |
| 10 | 1225 | Rear wheel bearing |
