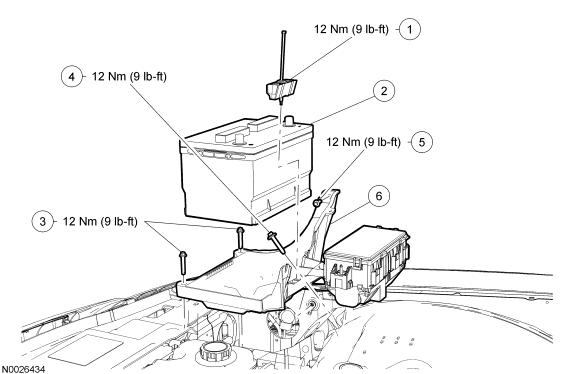

Battery And Battery Tray - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Battery hold-down clamp and bolt (part of 10732) |
| 2 | 10655 | Battery |
| 3 | N808480 | Battery tray bolts (2 required) |
| 4 | W708191 | Battery tray bolt |
| 5 | N808623 | Battery tray bolt |
| 6 | 10732 | Battery tray |
- For additional information, refer to the appropriate procedures .
