Upper Arm: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

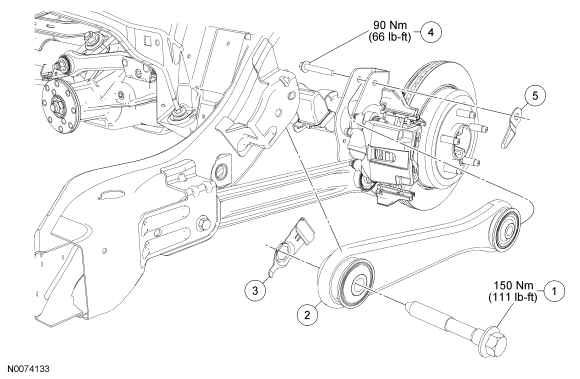

| Item |
Part Number |
Description |
| 1 |
W704665 |
Upper arm-to-frame bolt |
| 2 |
5501 |
Upper arm |
| 3 |
W707060 |
Upper arm-to-frame flagnut |
| 4 |
W506545 |
Upper arm-to-axle bolt |
| 5 |
W704662 |
Upper arm-to-axle nut |
