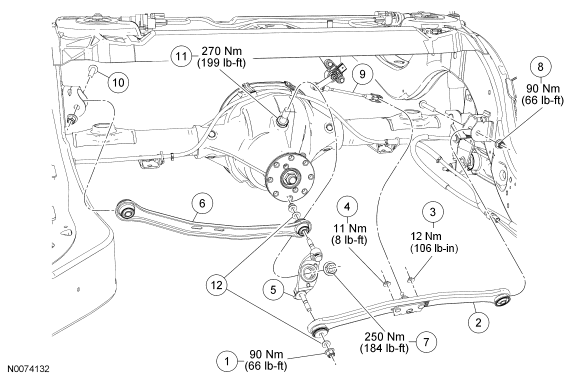

Lateral Arm and Watts Link Pivot Assembly: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W520214 | Lateral arm-to-Watts link pivot nuts (2 required) |
| 2 | 4264 | Lateral arm, LH |
| 3 | N803300 | Height sensor bracket nut (outer) |
| 4 | W700667 | Height sensor bracket nut (inner) |
| 5 | 4264 | Watts link pivot |
| 6 | 4264 | Lateral arm, RH |
| 7 | W520517 | Watts link pivot nut |
| 8 | W520214 | Lateral arm-to-frame nut (2 required) |
| 9 | 5A955 | Height sensor |
| 10 | W506545 | Lateral arm-to-frame bolt (2 required) |
| 11 | W704883 | Watts link pivot stud |
| 12 | W704642 | Washers (2 required) |
