Turbine Shaft Speed (TSS) Sensor




6F35

Turbine Shaft Speed (TSS) Sensor





Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the retainers and the LH splash shield.

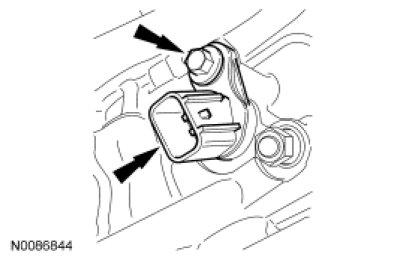

3. Disconnect the Turbine Shaft Speed (TSS) electrical connector, remove the bolt and the TSS sensor.





Installation

1. Install the TSS sensor, the bolt and connect the TSS electrical connector.
- Tighten to 12 Nm (106 lb-in).





2. Install the LH splash shield and the retainers.

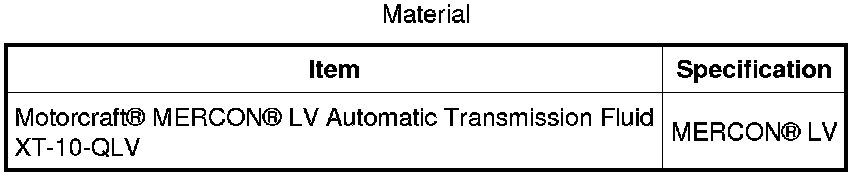

3. Fill with clean transmission fluid to the correct level.
