Instrument Cluster and Panel Illumination
Instrument Cluster and Panel Illumination
Instrument Cluster and Panel Illumination
Symptom Chart

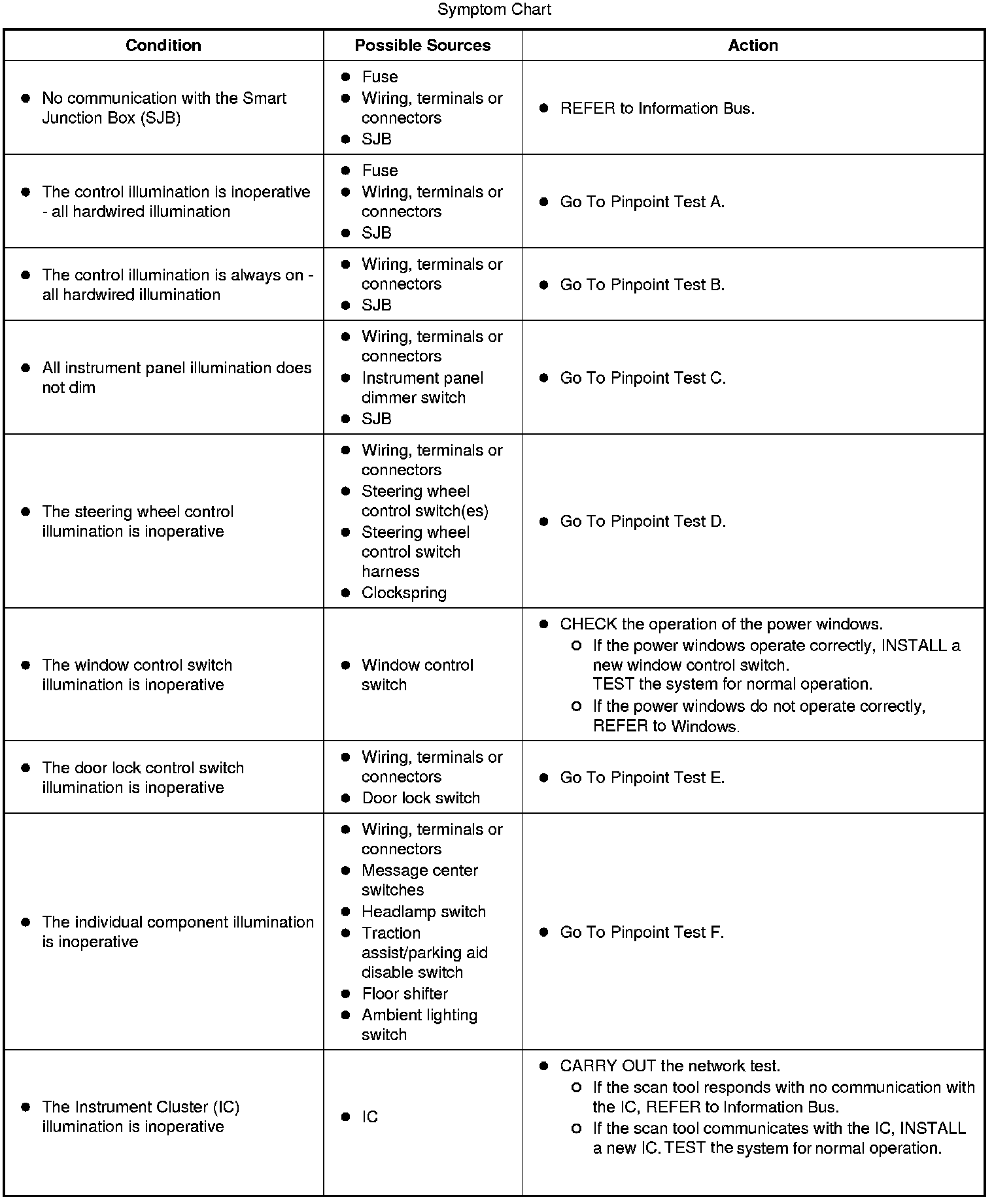

Symptom Chart (Part 1):

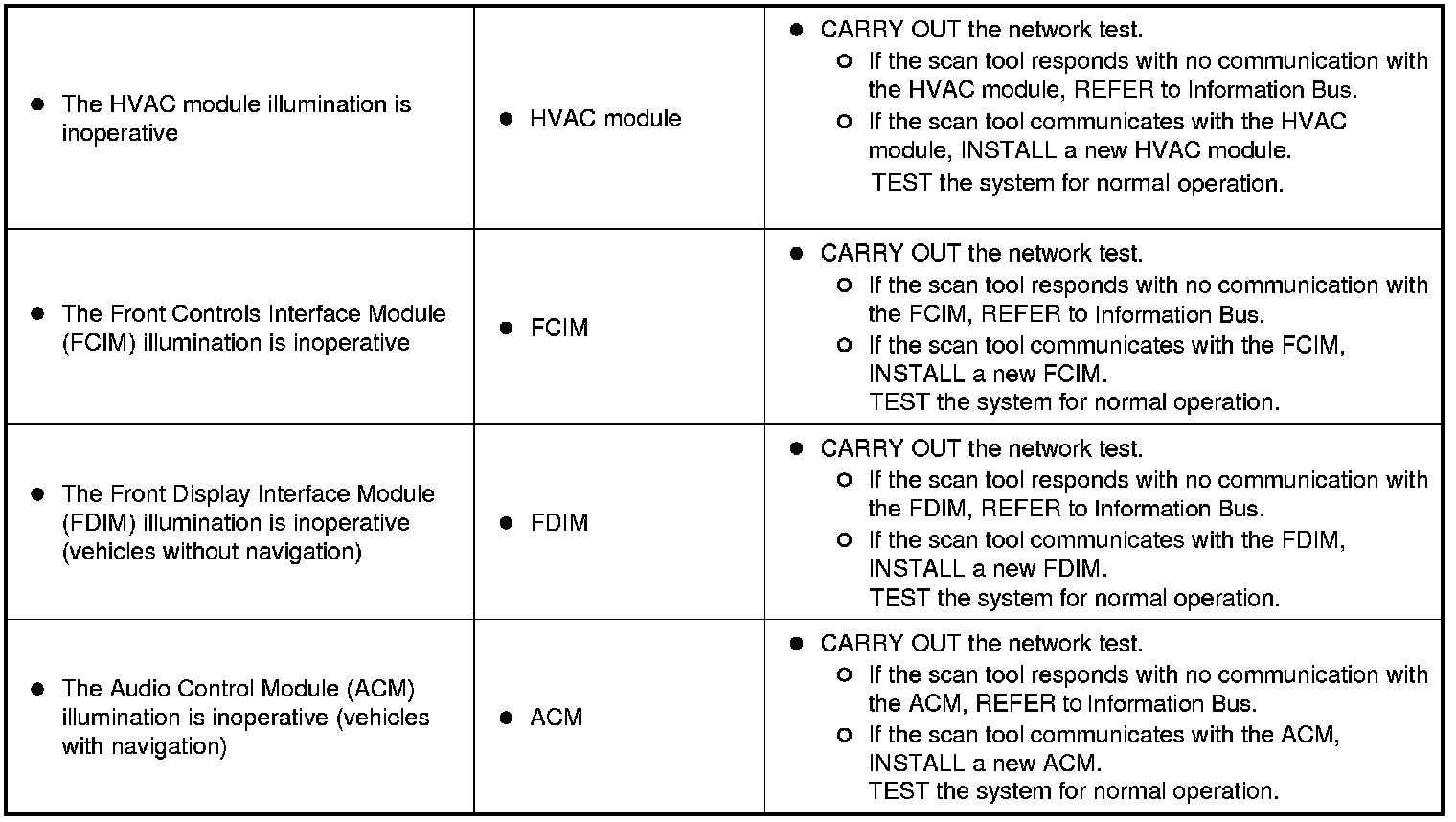

Symptom Chart (Part 2):
