Removal and Replacement

Message Center Switch









Removal and Installation

All vehicles

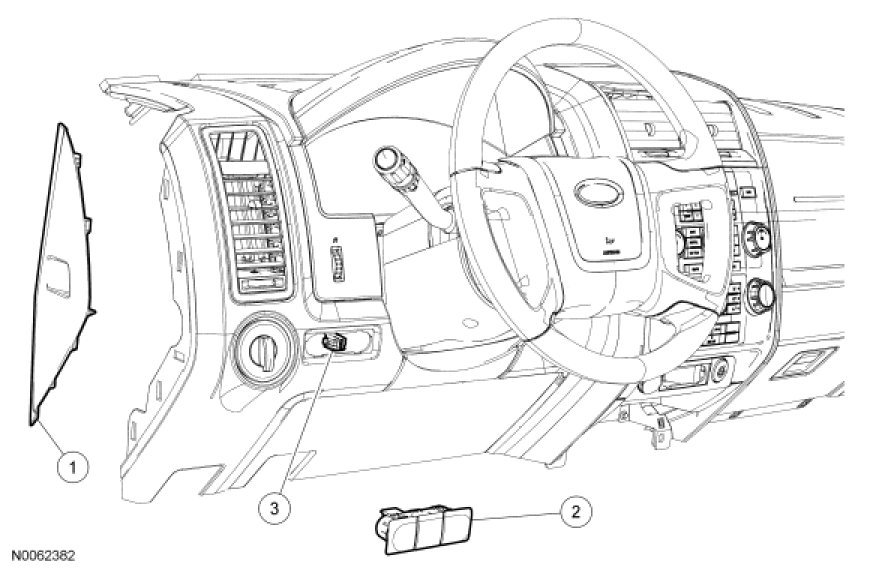

1. Remove the LH instrument panel trim panel.

Hybrid vehicles

2. Remove the jump start switch screw and position the jump start switch aside.

All vehicles

3. Press the retaining tabs and remove the message center switch.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
