Radiator: Service and Repair

Radiator - 2.5L

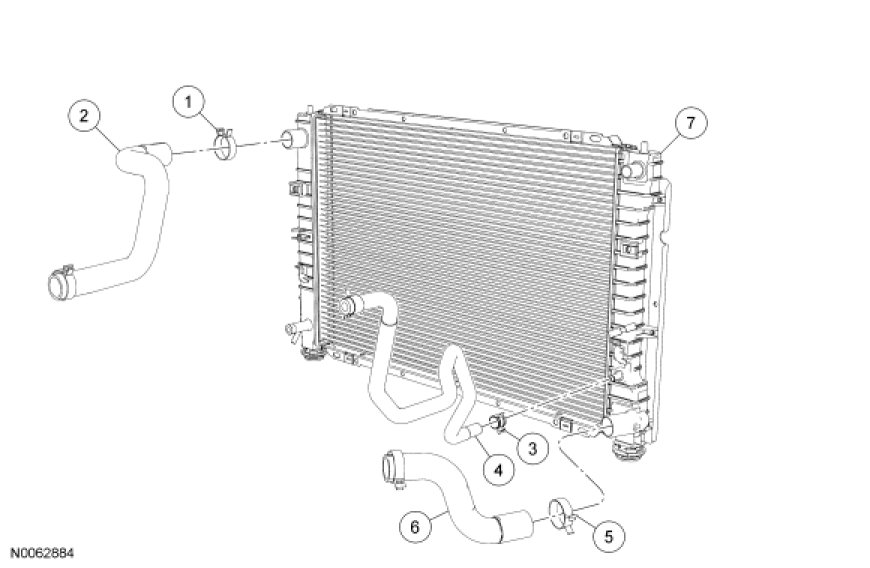

Radiator Hoses










Radiator









Removal and Installation

1. With vehicle in NEUTRAL, position it on a hoist.

2. Remove the cooling fan motor and shroud. For additional information, refer to Cooling Fan Motor and Shroud Service and Repair.

3. Disconnect the upper radiator hose from the radiator.

4. Disconnect the lower degas bottle-to-radiator hose from the radiator.

5. Disconnect the lower radiator hose from the radiator.

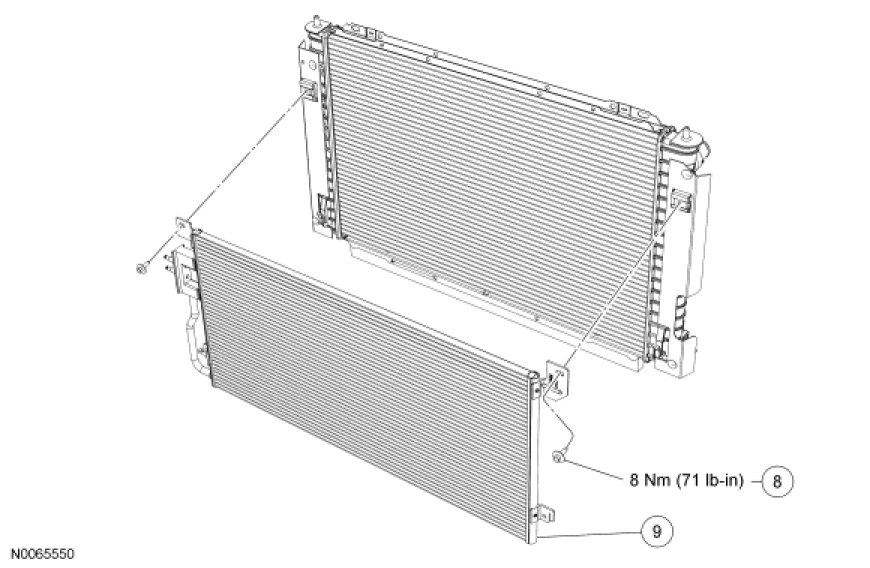

6. Remove the 2 A/C condenser-to-radiator bolts and position aside the A/C condenser.
- To install, tighten to 8 Nm (71 lb-in).

7. Remove the radiator.

8. To install, reverse the removal procedure.
