Home >> Mercury >> 2009 >> Mariner 4WD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 97 (Daytime Running Lamps)

Diagram Set 97 (Daytime Running Lamps)

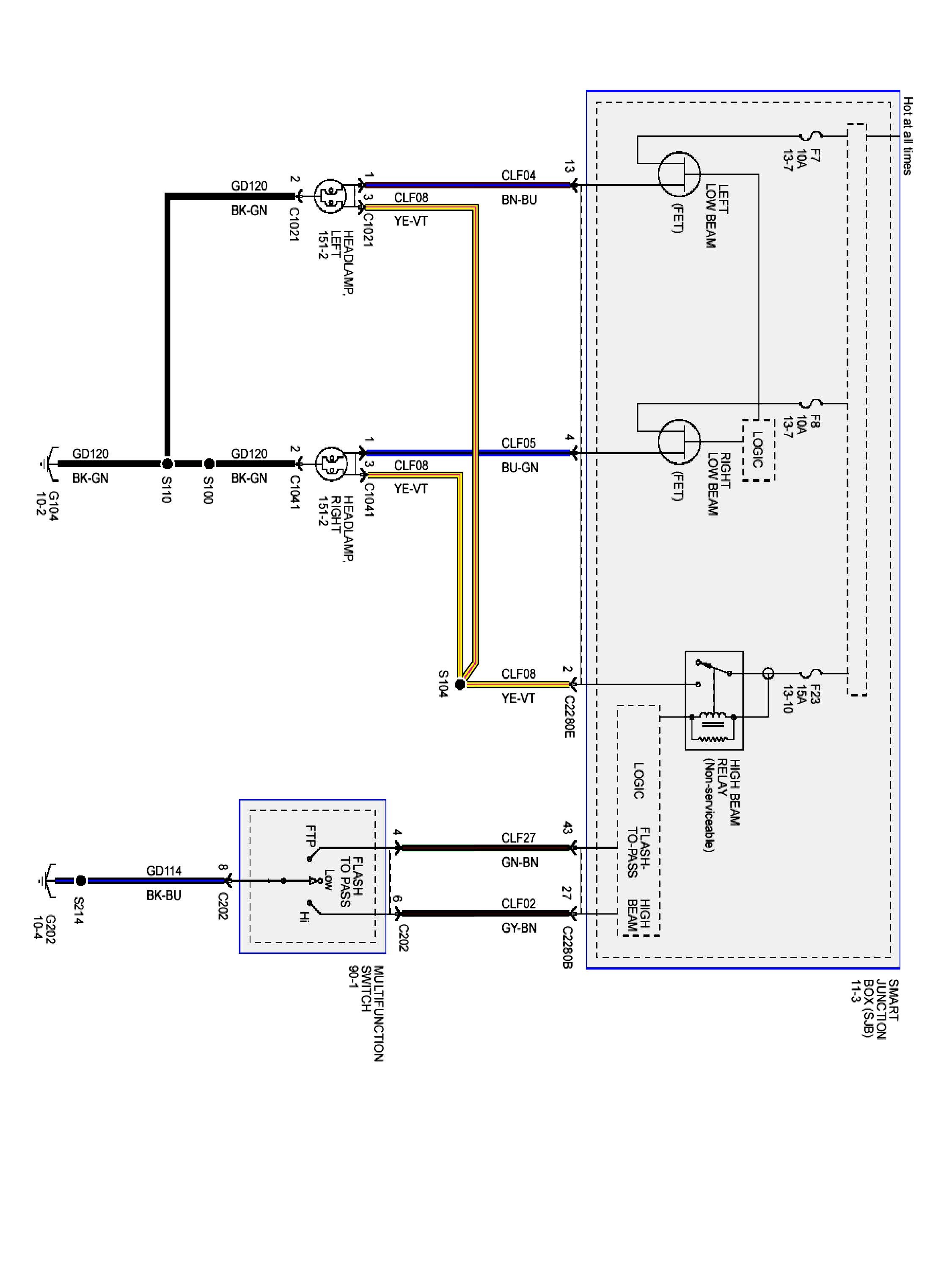

97-1:

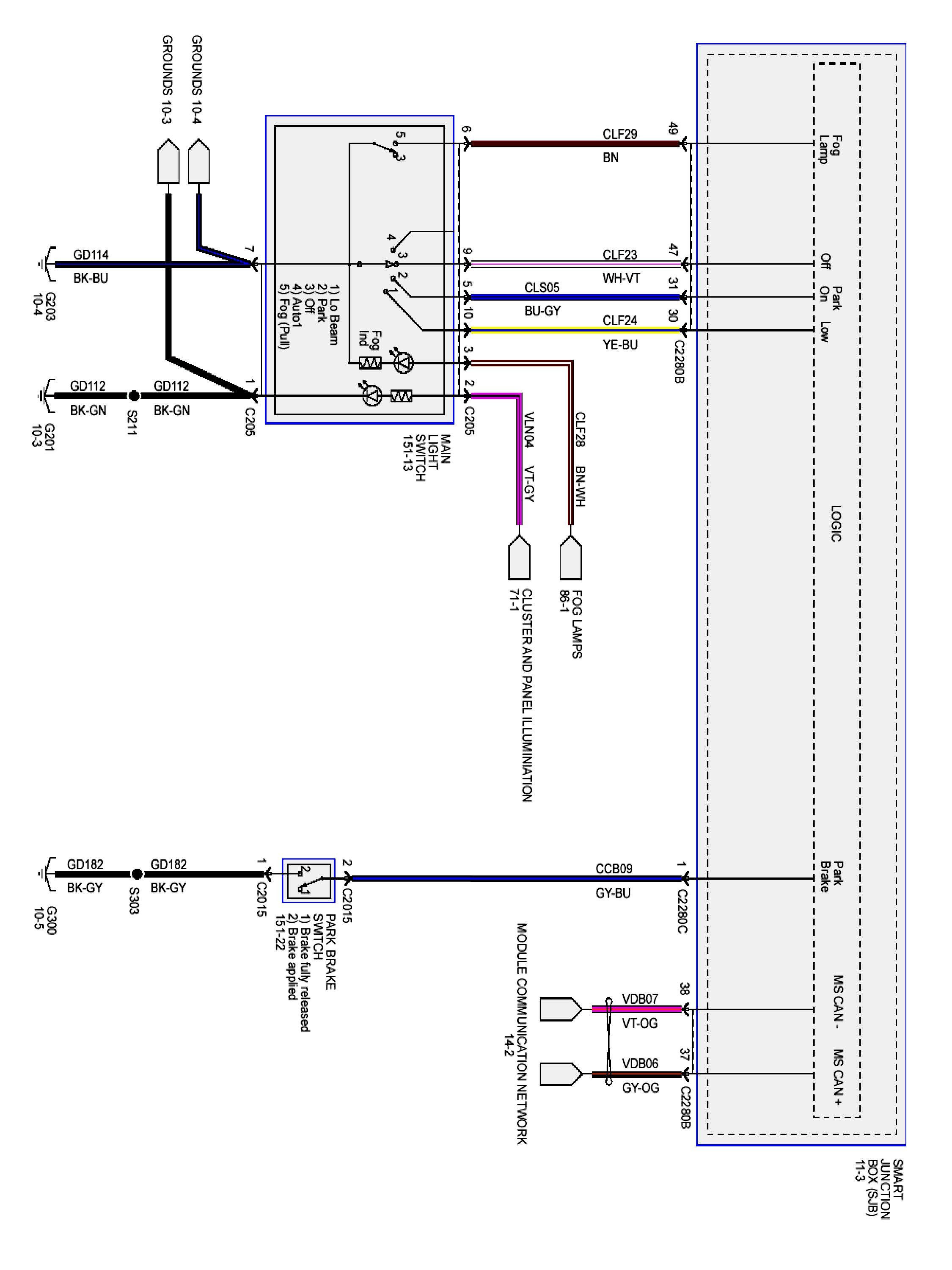

97-2:
