Interior Trim - Exploded View
Interior Trim - Exploded View
Interior Trim - Exploded View

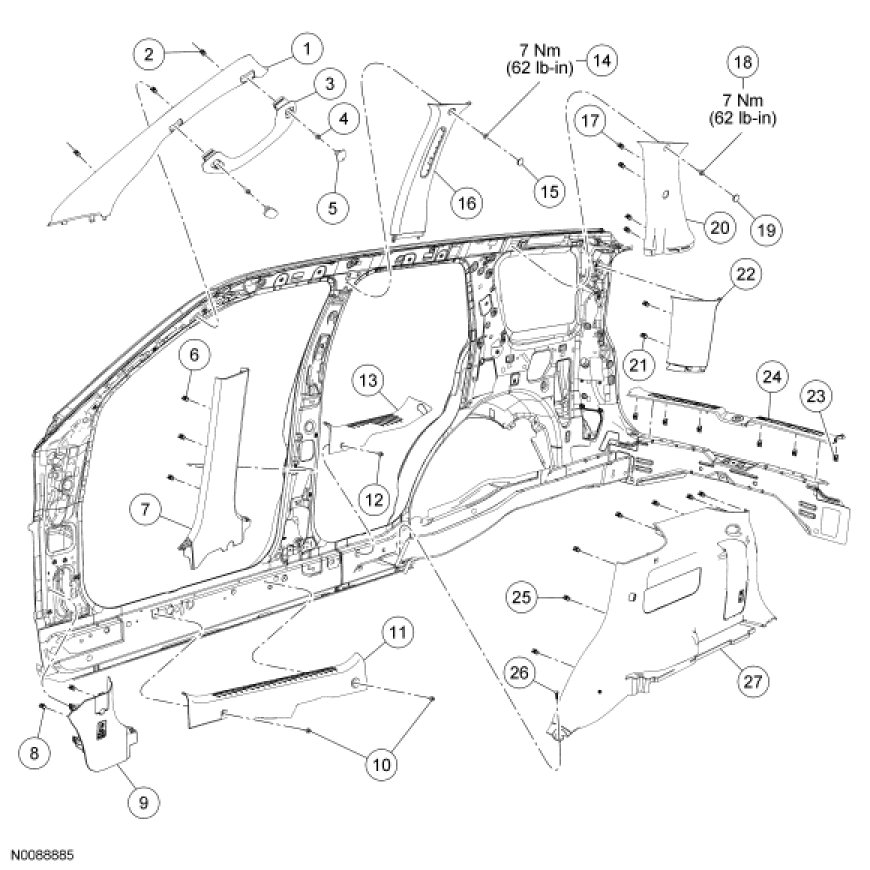

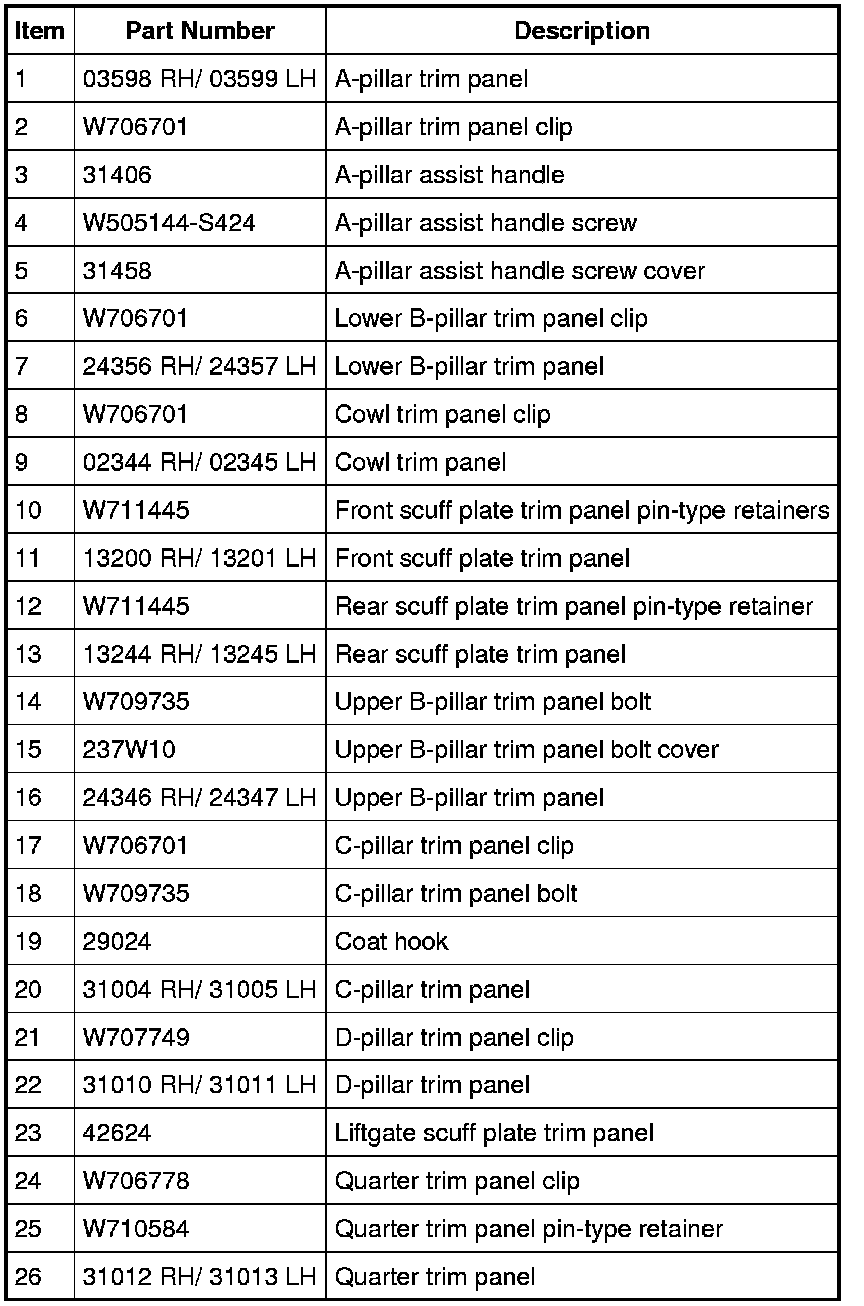

Early Build

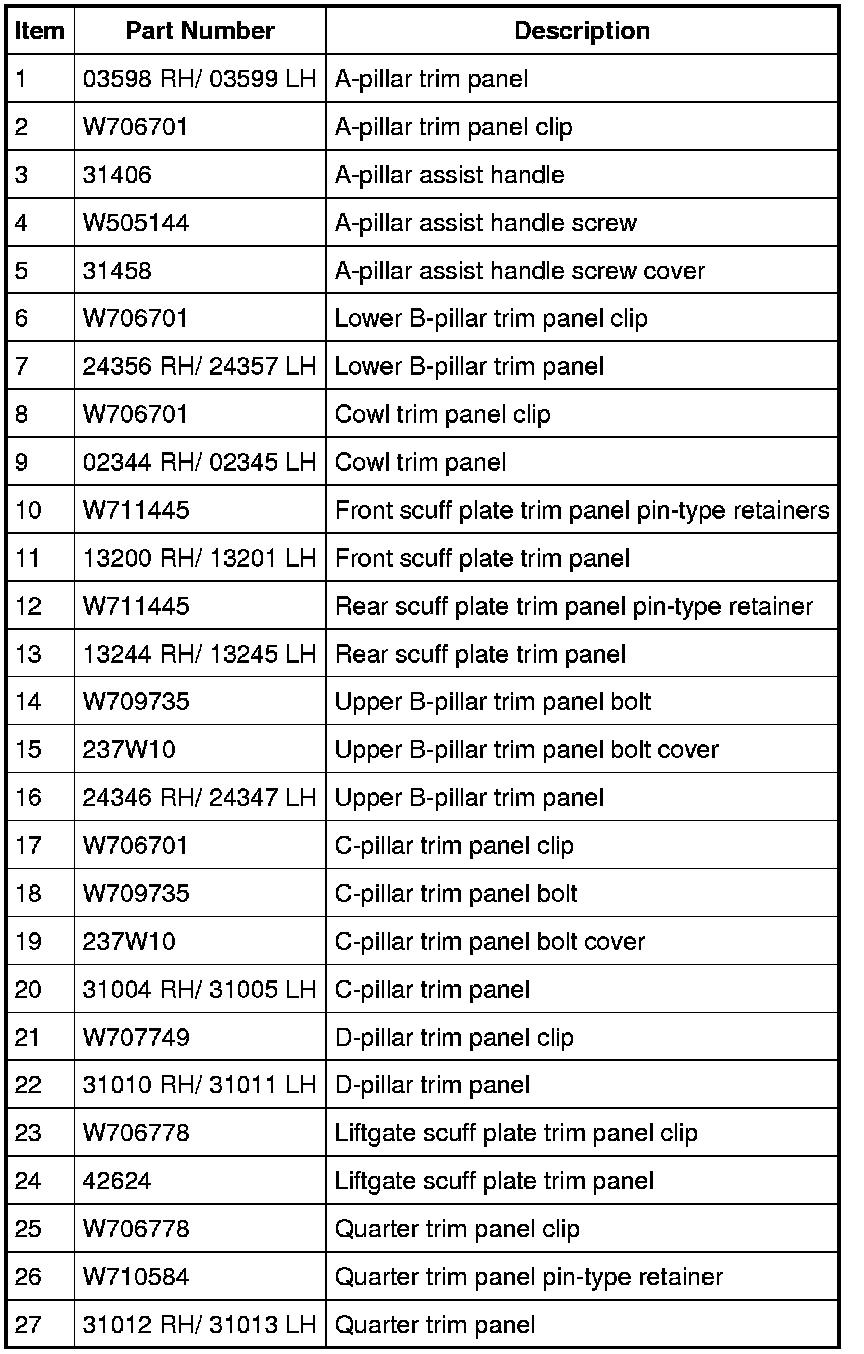

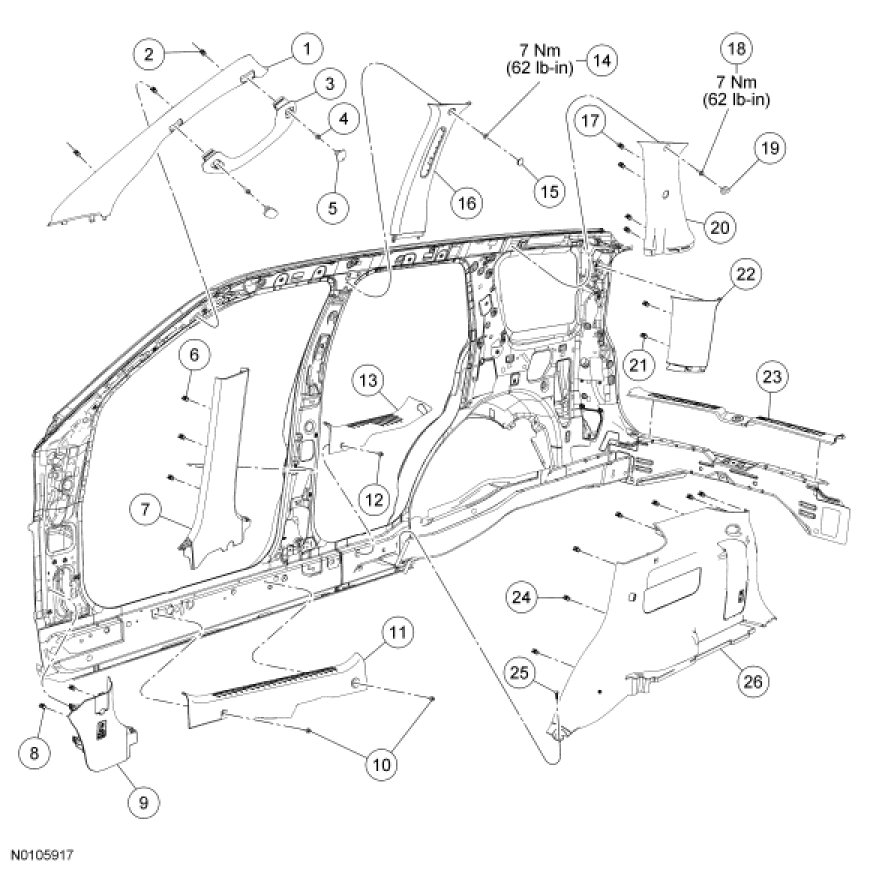

Late Build
1.
For additional information, refer to the procedures.
