Remote Control: Service and Repair

Steering Wheel Controls









Removal and Installation

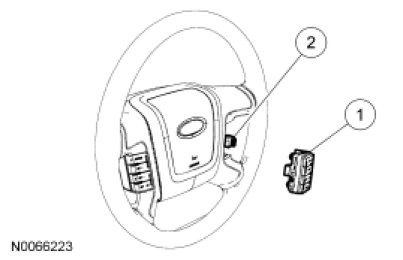

1. NOTE: It is not necessary to remove the driver air bag module during this procedure.

Using a suitable tool, pry the steering wheel controls out of the steering wheel.

2. NOTE: Do not allow the electrical connector to fall back into the steering wheel.

Remove the steering wheel controls.

- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
