P0480
Note:
Refer to the applicable vehicle system to diagnose the body and chassis DTCs.

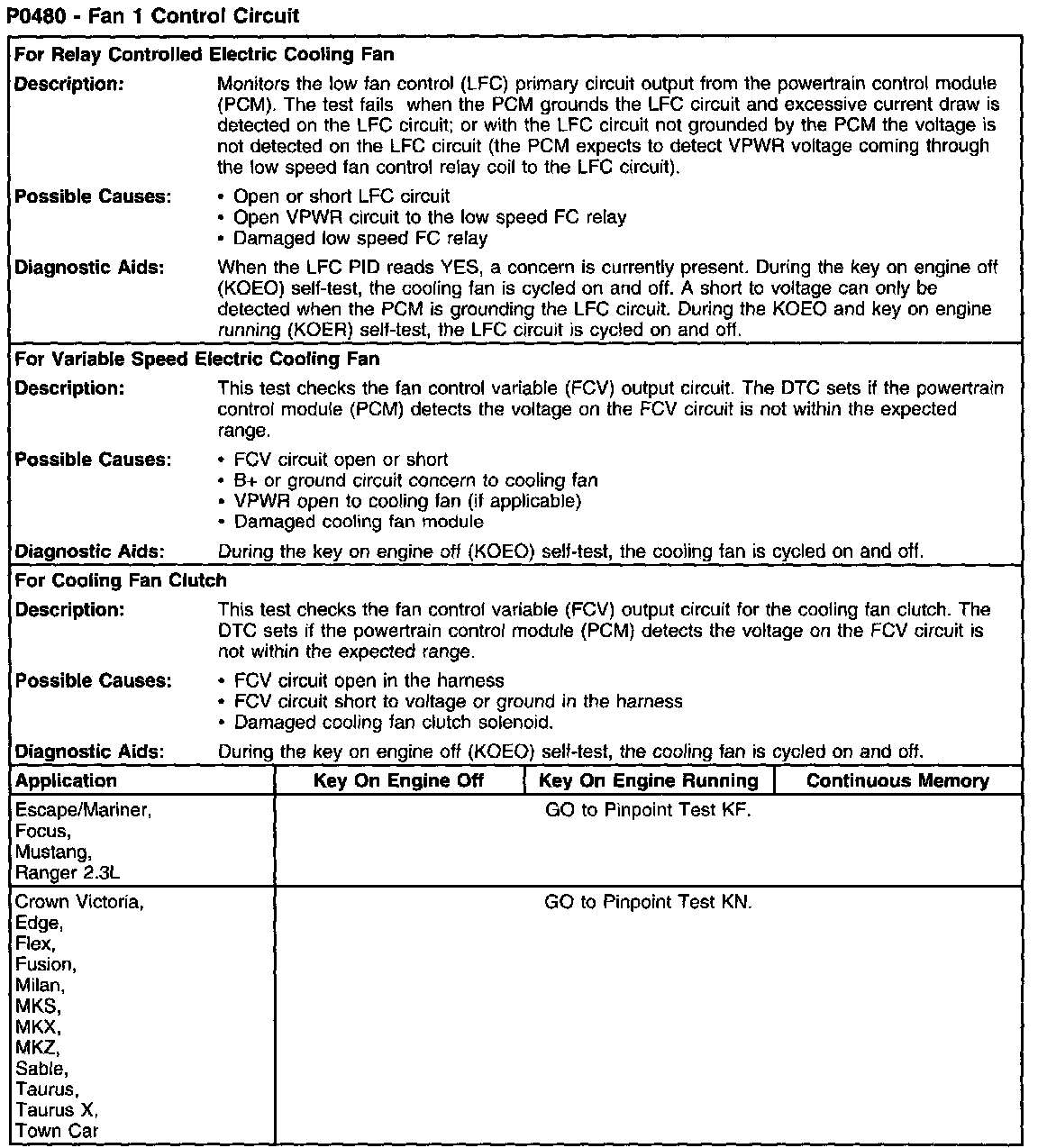

P0480 - Fan 1 Control Circuit (Part 1):
P0480 - Fan 1 Control Circuit (Part 2):
