Powertrain Control Module (PCM): Notes
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO.

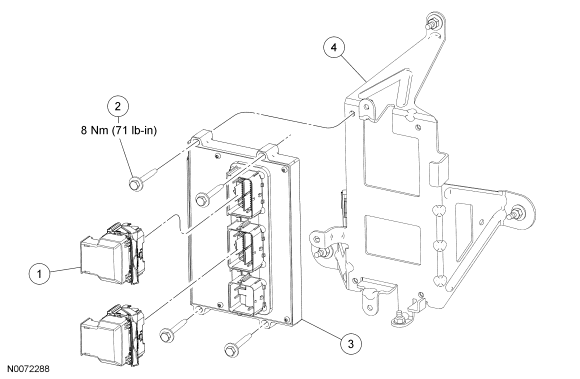

| Item |
Part Number |
Description |
| 1 |
14A464 |
PCM electrical connector (2 required) |
| 2 |
W505428 |
PCM bolt (4 required) |
| 3 |
12A650 |
PCM |
| 4 |
12A692 |
PCM bracket |
