Cylinder Head: Notes
WARNING: This page is about a different variant/trim than selected.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Alignment Plate, Camshaft | 303-465 (T94P-6256-CH) | |
| Engine Support Bar | 303-F072 | |
| Lifting Brackets, Engine | 303-050 (T70P-6000) |
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31-A |
- |
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |
| Silicone Gasket Remover ZC-30 |
- |

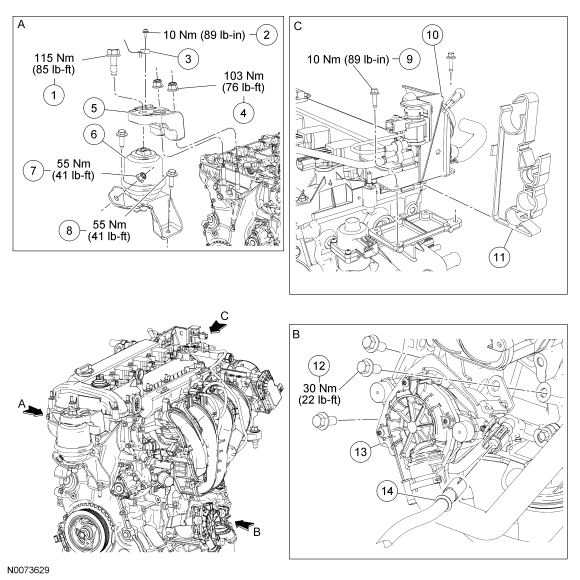

| Item | Part Number | Description |
|---|---|---|
| 1 | W711684 | Engine mount bracket bolt |
| 2 | W705936 | Radio frequency interference capacitor bolt |
| 3 | 19A095 | Radio frequency interference capacitor |
| 4 | W520214 | Engine mount bracket nut (2 required) |
| 5 | 6A094 | Engine mount bracket |
| 6 | 6F012 | Engine mount |
| 7 | W711578 | Engine mount nut |
| 8 | W706496 | Engine mount bolt (2 required) |
| 9 | - | Secondary Air Injection (AIR) valve bracket bolt (2 required) |
| 10 | - | AIR valve bracket |
| 11 | - | Evaporative emissions tube bundle clip |
| 12 | W500032 | AIR pump bolt (3 required) |
| 13 | 9A486A | AIR pump |
| 14 | 14A464 | AIR pump electrical connector (part of 12B637) |

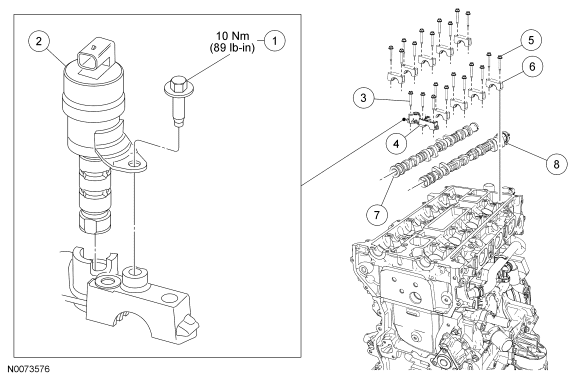

| Item | Part Number | Description |
|---|---|---|
| 1 | W500211 | Variable Camshaft Timing (VCT) oil control solenoid bolt |
| 2 | 6M280 | VCT oil control solenoid |
| 3 | W500301 | Intake camshaft bearing cap bolt |
| 4 | 6A258 | Intake camshaft bearing cap |
| 5 | W703383 | Camshaft bearing cap bolt (20 required) |
| 6 | 6A284 | Camshaft bearing cap (9 required) |
| 7 | 6A272 | Exhaust camshaft |
| 8 | 6A267 | Intake camshaft |

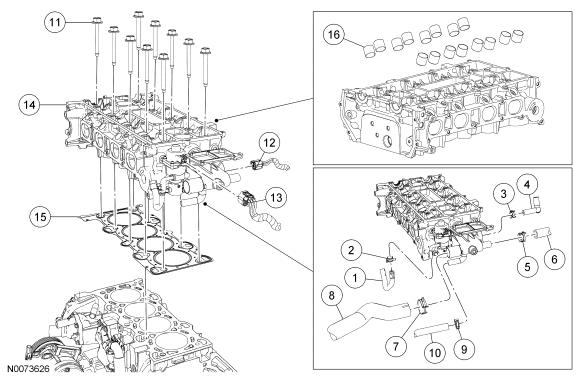

| Item | Part Number | Description |
|---|---|---|
| 1 | W52592 | EGR coolant tube clamp |
| 2 | 18K580 | EGR coolant hose |
| 3 | - | Engine coolant vent hose clamp |
| 4 | 8W005 | Engine coolant vent hose |
| 5 | - | Heater hose clamp |
| 6 | 18K580 | Heater hose |
| 7 | 8287 | Upper radiator hose clamp |
| 8 | 8260 | Upper radiator hose |
| 9 | W525958 | Bypass hose clamp |
| 10 | 8548 | Bypass hose |
| 11 | 6065 | Cylinder head bolt (10 required) |
| 12 | 14A464 | Engine Coolant Temperature (ECT) sensor electrical connector (part of 12B637) |
| 13 | 14A464 | EGR valve electrical connector (part of 12B637) |
| 14 | 6050 | Cylinder head |
| 15 | 6051 | Cylinder head gasket |
| 16 | 6500 | Valve tappet (16 required) |
