Clutch Slave Cylinder: Notes
WARNING: This page is about a different variant/trim than selected.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada) |
ESA-M6C25-A or WSS-M6C62-A |
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

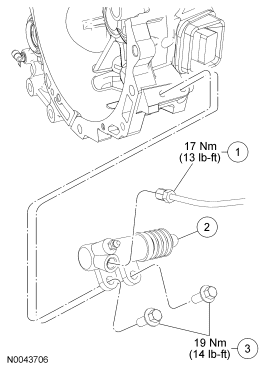

| Item | Part Number | Description |
|---|---|---|
| 1 | 7T504 | Clutch hydraulic line |
| 2 | 7A508 | Clutch slave cylinder |
| 3 | - | Clutch slave cylinder bolts (2 required) |
