Throttle Body
WARNING: This page is about a different variant/trim than selected.

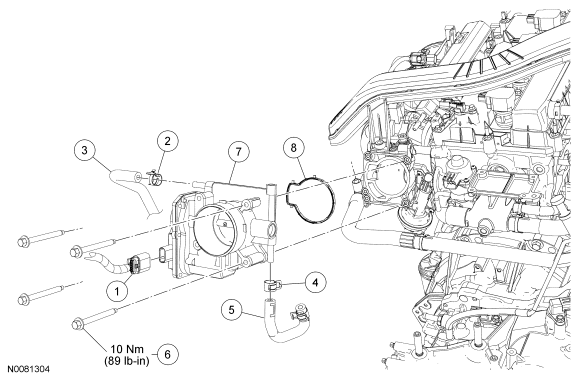

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Electronic throttle control electrical connector (part of 12B637) |
| 2 | W525952 | Throttle Body (TB) coolant inlet hose clamp |
| 3 | 9F475 | TB coolant inlet hose |
| 4 | W525952 | TB coolant outlet hose clamp |
| 5 | 18C266 | TB coolant outlet hose |
| 6 | W500305 | TB bolt (4 required) |
| 7 | 9F991 | TB |
| 8 | - | TB gasket (part of 9F991) |
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING:
Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
- Remove the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING - 2.3L article.
- Disconnect the electronic throttle control electrical connector.
- Release the Throttle Body (TB) coolant inlet hose clamp.
- Disconnect and plug the hose.
- Release the TB coolant outlet hose clamp.
- Disconnect and plug the hose.
- Remove the 4 bolts and the TB.
- Discard the TB gasket.
- To install, tighten to 10 Nm (89 lb-in).
- To install, reverse the removal procedure.
NOTE:
Install a new TB gasket.
